EGR PIPE [SKYACTIV-D 1.5]

id0116q2189300

Purpose, Function

• The EGR pipe is the passage for recirculating the exhaust gas to the intake air side.

Construction

HP-EGR control valve side

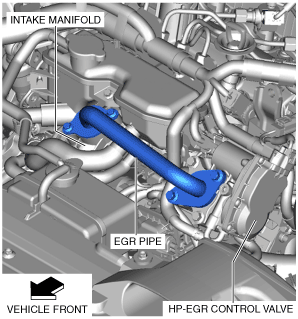

• The EGR pipe is located between the intake manifold and HP-EGR control valve.

am3zzn00005105

LP-EGR control valve side

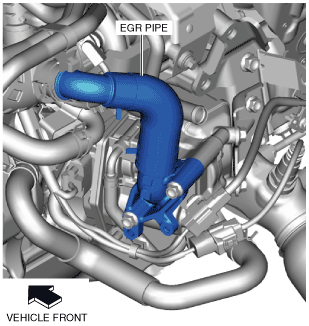

• The EGR pipe is located between the variable geometry turbocharger and the LP-EGR control valve.

ac3wzn00001034

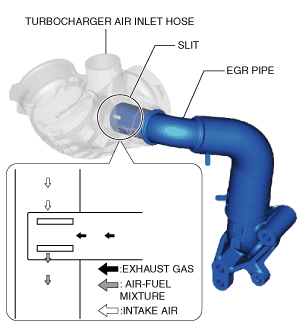

• The end of the pipe has holes (slits) to facilitate mixing of the exhaust gas and intake air.

am2zzn00003331
