•  The check valve adjusts and maintains the pressure in the fuel tank at a constant pressure.

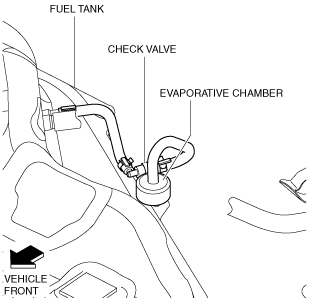

•  The check valve is installed to the fuel tank.

am3zzn00005106

•  Mainly consists of valve, umbrella and spring.

am3zzn00005108

•  The valve moves in response to the difference in air pressure between the fuel tank side and the atmospheric side, thereby changing the path of airflow.

•  When the pressure in the fuel tank becomes negative due to fuel consumption or other factors, the path opens, drawing atmospheric air into the fuel tank.
