POSITIVE CRANKCASE VENTILATION (PCV) SYSTEM [SKYACTIV-G 1.5, SKYACTIV-G 2.0, SKYACTIV-G 2.5]

id0116ze148900

Purpose, Outline

• Prevents release of blow-by gas (unburnt gas) into the atmosphere.

• The intake manifold vacuum introduces blow-by gas to the intake manifold via the PCV valve and the ventilation hose.

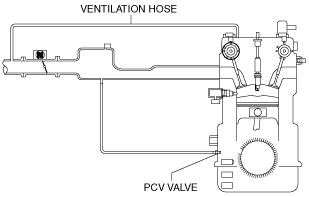

System Diagram

ac5uun00000087

Structure

• The positive crankcase ventilation system consists of the following parts:

Part name	Reference
PCV valve	(See POSITIVE CRANKCASE VENTILATION (PCV) VALVE [SKYACTIV-G 1.5, SKYACTIV-G 2.0, SKYACTIV-G 2.5].)
Ventilation hose	―
