EVAPORATIVE CHAMBER [SKYACTIV-G 1.5, SKYACTIV-G 2.0, SKYACTIV-G 2.5]
id0116ze156800
Purpose, Function
• The evaporative chamber prevents penetration of water and dust in the charcoal canister.

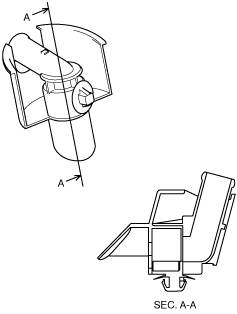

Construction
• The evaporative chamber is installed to the side of the charcoal canister.
• A small section with partitions is located in the evaporative chamber.
Operation
• There partitions protect the charcoal canister by preventing flooding as atmospheric air enters from the airflow holes.
