•  The check valve maintains constant pressure in the fuel tank.

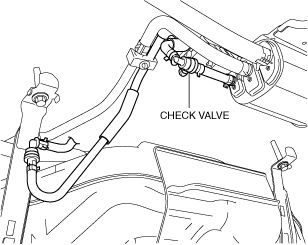

•  The check valve is installed to the side of the charcoal canister.

Note

•  Type A joint pipe does not have the check valve function.

am3zzn00005667

•  Mainly consists of valve, umbrella, and spring.

am3zzn00004935

•  The valve moves in response to the difference in air pressure between the fuel tank side and the atmospheric side, thereby changing the path of airflow.

•  When the pressure in the fuel tank becomes negative due to fuel consumption or other factors, the path opens, drawing atmospheric air into the fuel tank.
