CATALYTIC CONVERTER [SKYACTIV-G 1.5, SKYACTIV-G 2.0, SKYACTIV-G 2.5]

id0116ze814400


Purpose, Function

•  The catalytic converter purifies contaminants in the exhaust gas by utilizing the chemical reactions of the three-way catalytic converter.
•  Exhaust gas is purified directly after engine start by the warm-up three-way catalyst (WU-TWC) and three-way catalyst (TWC).

Construction


WU-TWC

•  The WU-TWC is installed to the rear of the engine.
ac5uun00000095
•  The WU-TWC is integrated with the exhaust manifold.


TWC

•  The TWC is installed to the rear of the WU-TWC.

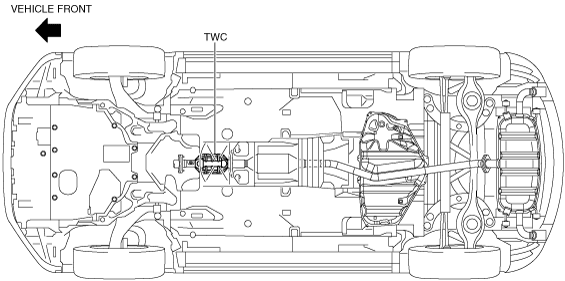

am3uun00003208


Operation

•  Contaminants in the exhaust gas (HC, CO, NOx) are purified by oxidization and deoxidization while they are passing through the catalytic converter.
―  Oxidization process
•  Noxious hydrocarbon (HC) and carbon monoxide (CO) are bound with oxygen and converted to non-noxious carbon dioxide and water.
O2+HC+CO→CO2+H2O
―  Deoxidization process
•  Noxious nitrogen oxide (NOx) is converted to non-noxious nitrogen and oxygen. A part of the oxygen generated in this process is used in the oxidization process.
NOx→N2+O2
