DC-DC CONVERTER [SKYACTIV-D 2.2 (WITHOUT i-ELOOP)]

id0117h60045i4


Purpose, Function

•  When the engine is restarted by the i-stop control, the battery voltage temporarily decreases to operate the starter. Pressure is increased to maintain the voltage for vehicle electrical devices at that time.

Construction

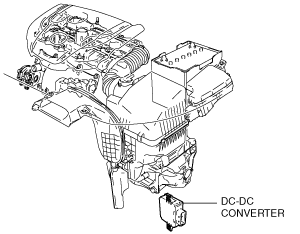

•  The DC-DC converter is installed on the vehicle's left front part (lower part of front combination light).
am6zzn00002458

Operation

•  The battery voltage increases based on the control signal from the PCM.
am3zzn00006096
*1  :Without center display
*2  :With center display
*3  :With parking sensor system
*4  :With full-auto A/C
*5  :With Bose® type audio
*6  :With Bluetooth® system
•  For details of the DC-DC converter control, refer to CONTROL SYSTEM. (See DC-DC CONVERTER CONTROL [SKYACTIV-D 2.2].)

Fail-safe

DTC

Fail-safe
P0A8D:00
•  Inhibits engine-stop by operating the i-stop function.
•  Inhibits a part of the generator output control.
P0A94:00
•  Inhibits engine-stop by operating the i-stop function.
U0298:00
