CHARGING SYSTEM LOCATION INDEX [SKYACTIV-G 1.5, SKYACTIV-G 2.0, SKYACTIV-G 2.5 (WITHOUT i-ELOOP)]

id0117i68001i8

Note

•  For location index of the generator, DC-DC converter (i-ELOOP), capacitor (i-ELOOP) on vehicles with i-ELOOP, refer to the i-ELOOP section. (See CHARGING SYSTEM LOCATION INDEX [SKYACTIV-G 1.5, SKYACTIV-G 2.0, SKYACTIV-G 2.5 (WITH i-ELOOP)].)

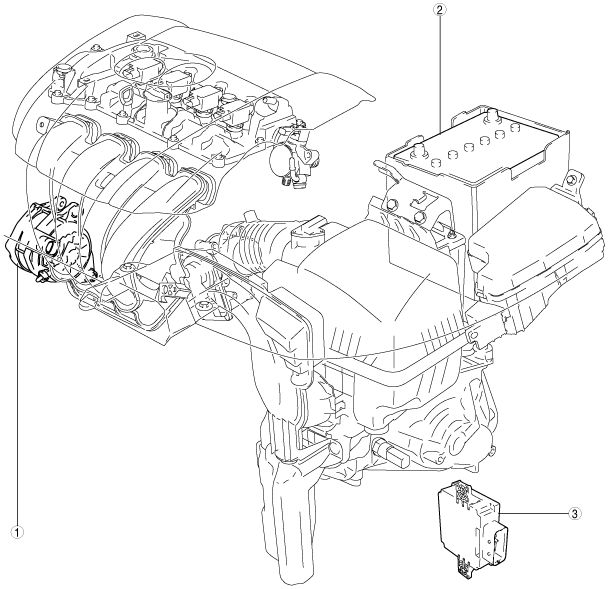

am6zzw00011728

1	Generator (See GENERATOR REMOVAL/INSTALLATION [SKYACTIV-G 1.5, SKYACTIV-G 2.0, SKYACTIV-G 2.5 (WITHOUT i-ELOOP)].) (See GENERATOR INSPECTION [SKYACTIV-G 1.5, SKYACTIV-G 2.0, SKYACTIV-G 2.5 (WITHOUT i-ELOOP)].) (See GENERATOR DISASSEMBLY/ASSEMBLY [SKYACTIV-G 1.5, SKYACTIV-G 2.0, SKYACTIV-G 2.5 (WITHOUT i-ELOOP)].)
2	Battery (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION [SKYACTIV-G 1.5, SKYACTIV-G 2.0, SKYACTIV-G 2.5].) (See BATTERY REMOVAL/INSTALLATION [SKYACTIV-G 1.5, SKYACTIV-G 2.0, SKYACTIV-G 2.5].) (See BATTERY INSPECTION [SKYACTIV-G 1.5, SKYACTIV-G 2.0, SKYACTIV-G 2.5].) (See BATTERY RECHARGING [SKYACTIV-G 1.5, SKYACTIV-G 2.0, SKYACTIV-G 2.5].) (See BATTERY CONDITION INITIALIZATION SETTING (i-stop SETTING) [SKYACTIV-G 1.5, SKYACTIV-G 2.0, SKYACTIV-G 2.5].)
3	DC-DC converter (with i-stop) (See DC-DC CONVERTER REMOVAL/INSTALLATION [SKYACTIV-G 1.5, SKYACTIV-G 2.0, SKYACTIV-G 2.5 (WITHOUT i-ELOOP)].) (See DC-DC CONVERTER INSPECTION [SKYACTIV-G 1.5, SKYACTIV-G 2.0, SKYACTIV-G 2.5 (WITHOUT i-ELOOP)].)
