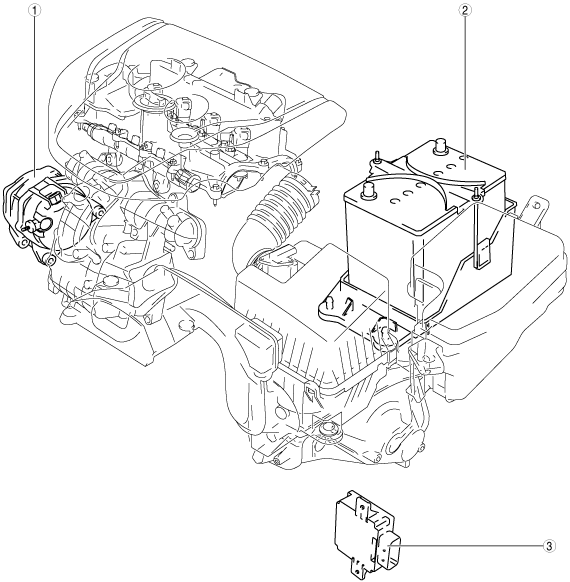

CHARGING SYSTEM LOCATION INDEX [SKYACTIV-D 1.5]

id0117q6800100

am3zzw00017224

1	Generator (See GENERATOR REMOVAL/INSTALLATION [SKYACTIV-D 1.5].) (See GENERATOR INSPECTION [SKYACTIV-D 1.5].) (See GENERATOR DISASSEMBLY/ASSEMBLY [SKYACTIV-D 1.5].)
2	Battery (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION [SKYACTIV-D 1.5].) (See BATTERY REMOVAL/INSTALLATION [SKYACTIV-D 1.5].) (See BATTERY INSPECTION [SKYACTIV-D 1.5].) (See BATTERY RECHARGING [SKYACTIV-D 1.5].) (See BATTERY CONDITION INITIALIZATION SETTING (i-stop SETTING) [SKYACTIV-D 1.5].)
3	DC-DC converter (See DC-DC CONVERTER REMOVAL/INSTALLATION [SKYACTIV-D 1.5].) (See DC-DC CONVERTER INSPECTION [SKYACTIV-D 1.5].)
