IGNITION SYSTEM [SKYACTIV-G 1.5, SKYACTIV-G 2.0, SKYACTIV-G 2.5]

id0118i2108200

Outline

• A direct ignition coil for independent ignition control has been adopted.

• An ignition coil built-into the ion sensor has been adopted.

• An iridium spark plug has been adopted.

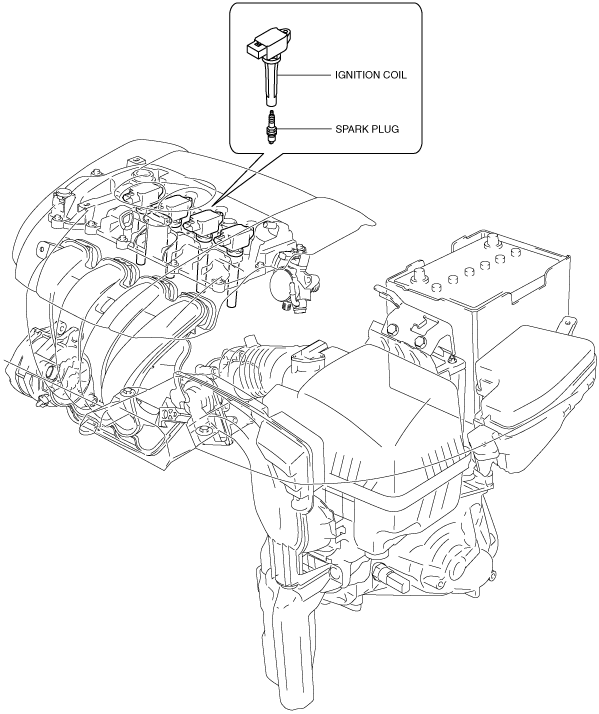

Structural View

am3uun00003355

Structure

• Consists of the following parts:

Spark plug	(See SPARK PLUG [SKYACTIV-G 1.5, SKYACTIV-G 2.0, SKYACTIV-G 2.5].)
Ignition coil	(See IGNITION COIL [SKYACTIV-G 1.5, SKYACTIV-G 2.0, SKYACTIV-G 2.5].)
