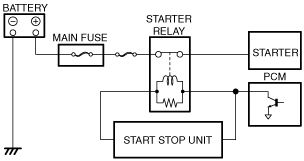

• The signal from the start stop unit is sent to the starter relay. When a ground is established in the PCM circuit by the PCM control, electric current flows to the coil, the contact point is drawn by the generated electromagnetic force, and it switches on. When the contact point switches on, battery power is supplied to the starter.
