CRUISE MAIN INDICATION (WHITE), CRUISE SET INDICATION (WHITE), CRUISE SET INDICATOR LIGHT (GREEN) [SKYACTIV-D 1.5]

id0120r1100700

Purpose

Cruise main indication (white)

• The cruise main indication (white) turns on while the cruise control system is on stand-by to inform the driver that the cruise control system is on stand-by.

Cruise set indication (white) / cruise set indicator light (green)

• The cruise set indication (white) / cruise set indicator light (green) turns on while the cruise control system is operating to inform the driver that the cruise control system is operating.

Function

• The illumination conditions for the cruise main indication (white), cruise set indication (white), cruise set indicator light (green) are as follows.

am3zzn00006546

*1 :The PCM stores the previous set speed

Construction

• The cruise main indication (white), cruise set indication (white) and cruise set indicator light (green) are built into the instrument cluster.

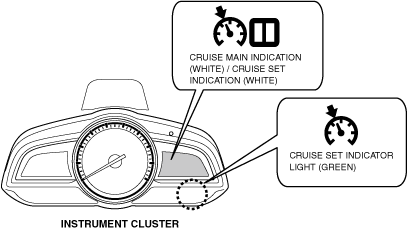

am3zzn00006564

Operation

1. The instrument cluster receives (1) a cruise main indication (white), cruise set indication (white) or cruise set indicator light (green) illumination request signal from the PCM via CAN communication.

2. The instrument cluster turns the transistor on (2) based on the cruise set indicator light (green) illumination request signal.In addition, the instrument cluster displays the cruise main indication (white) / cruise set indication (white) in the multi-information display based on the cruise main indication (white) / cruise set indication (white) display request signal.

3. When the transistor turns on, the cruise set indicator light (green) turns on (3).

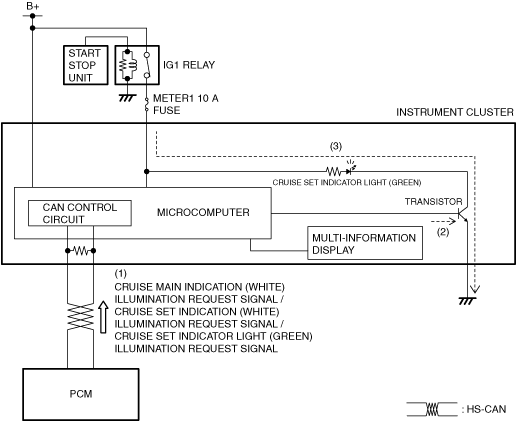

am3zzn00006549

Fail-safe

• Not applicable
