DC-DC CONVERTER CONTROL [SKYACTIV-G 1.5, SKYACTIV-G 2.0, SKYACTIV-G 2.5]

id0140g5004300

Vehicles Without i-ELOOP

Outline

• Stability of the power supply to the cabin has been realized by preventing decreases in the power supply due to battery voltage decreases while the engine is restarted by the i-stop control.

• When the engine is restarted by the i-stop control, the PCM sends a battery voltage (DC-DC converter downstream voltage) boost request signal to the DC-DC converter.

Block Diagram

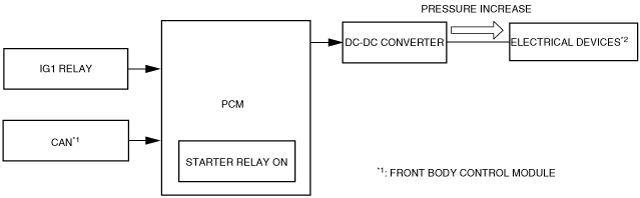

am3zzn00006153

*2 :For details on the vehicle's electrical devices, refer to the CHARGING SYSTEM. (See DC-DC CONVERTER [SKYACTIV-G 1.5, SKYACTIV-G 2.0, SKYACTIV-G 2.5 (WITHOUT i-ELOOP)].)

Operation

• When the engine is restarted by the i-stop control, the PCM sends a voltage boost request signal to the DC-DC converter so that the DC-DC converter downstream voltage is maintained at 11.5―12.5 V.

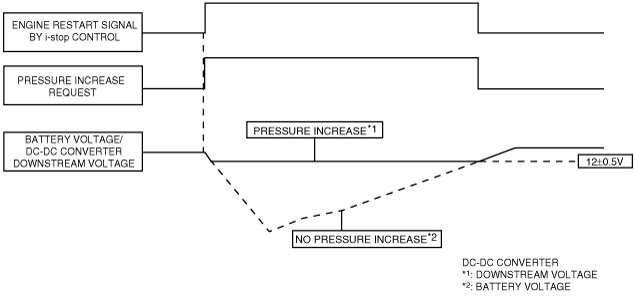

am3zzn00004106
