POWER BRAKE UNIT VACUUM SENSOR [SKYACTIV-G 1.5, SKYACTIV-G 2.0, SKYACTIV-G 2.5]
id0140g5004600
Purpose/Function
• Detects the vacuum in the power brake unit to assure brake performance while the engine is stopped by the i-stop control.
• Detects the vacuum in the power brake unit and sends it to the PCM as a power brake unit vacuum pressure signal.
Construction

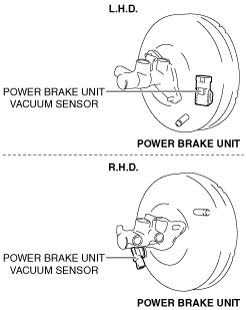

• Installed to the power brake unit.
• The power brake unit vacuum sensor has adopted a piezoelectric element to the detection area for detection of the vacuum in the power brake unit.
Operation
• The signal, which changes according to the vacuum in the power brake unit, is send to the PCM.
Power brake unit vacuum sensor characteristic
Fail-safe
|
DTC No.
|
Fail-safe function
|
|
P0555:00
|
• Flashes the i-stop warning light (amber) and inhibits engine-stop by the i-stop control.
|
