AIR FUEL RATIO (A/F) SENSOR [SKYACTIV-G 1.5, SKYACTIV-G 2.0, SKYACTIV-G 2.5]

id0140g5004800


Purpose/Function

•  Detects the oxygen concentration (all-range air/fuel ratio) in the exhaust gas as basic information (mainly used to determine the fuel injection amount) and sends it to the PCM as an oxygen concentration (all-range air/fuel ratio) signal.
•  Because the A/F sensor has an output characteristics proportional to the actual air/fuel ratio, a detailed air/fuel ratio can be detected and compared using the HO2S, which detects the rich/lean of the oxygen concentration in relation to the theoretical air/fuel ratio.

Construction

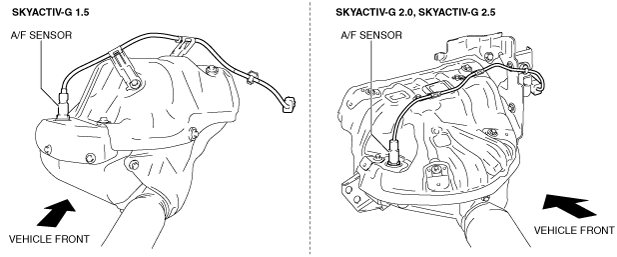

•  Installed to the exhaust manifold.
am3zzn00003598
•  A zirconia element has been adopted (as the detecting element) for detecting the oxygen concentration (all-range air/fuel ratio).

Operation

•  The A/F sensor has an oxygen standard chamber, which is always kept at 100% of oxygen concentration, and an oxygen concentration detection chamber, where the oxygen concentration in the exhaust gas is detected.
•  A zirconia element has the characteristic of moving oxygen when electrical current flows. The oxygen standard chamber is kept at 100% oxygen concentration using this characteristic, and by comparing it with the oxygen concentration inside the oxygen concentration detection chamber, the oxygen concentration in the exhaust gas can be detected.
am3zzn00006161

A/F sensor characteristic

am3uun00001717

Fail-safe

DTC No.

Fail-safe function
P0031:00
•  Stops the fuel feedback control.
P0032:00
•  Stops the fuel feedback control.
P0130:00
•  Fixes the duty value of the A/F sensor heater.
•  Stops the fuel feedback control of the A/F sensor.
P0131:00
•  Fixes the duty value of the A/F sensor heater.
•  Stops the fuel feedback control of the A/F sensor.
P0132:00
•  Fixes the duty value of the A/F sensor heater.
•  Stops the fuel feedback control of the A/F sensor.
P0133:00
•  Fixes duty value of A/F sensor heater
•  Stops fuel feedback control of A/F sensor
P0134:00
•  Fixes the duty value of the A/F sensor heater.
•  Stops the fuel feedback control of the A/F sensor.
P2237:00
•  Fixes the duty value of the A/F sensor heater.
•  Stops the fuel feedback control of the A/F sensor.
