i-stop OFF SWITCH [SKYACTIV-G 1.5, SKYACTIV-G 2.0, SKYACTIV-G 2.5]

id0140g5008000

Purpose/Function

• i-stop control is inhibited by turning on the i-stop OFF switch.

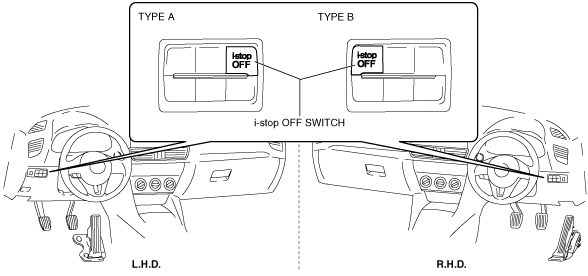

Construction

• Installed to the cluster switch.

am3zzn00006160

Operation

• The i-stop control is inhibited when the i-stop OFF switch on-signal from the instrument cluster is received.

am3zzn00003621

Fail-safe

• Function not equipped.
