ENGINE OIL MAINTENANCE MONITOR [SKYACTIV-G 1.5, SKYACTIV-G 2.0, SKYACTIV-G 2.5]


id0140g5687900


Only European specs.


Outline

•  The PCM informs the driver of the engine oil replacement period according to the traveled distance, elapsed time, and driving conditions.

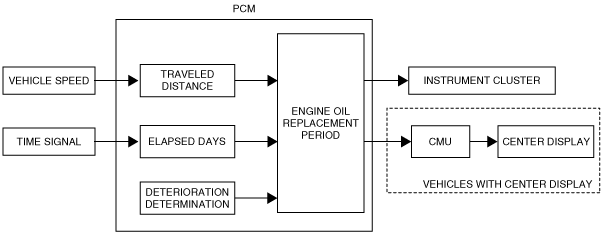

Block Diagram

am3zzn00004125


Operation

•  The PCM calculates the traveled distance and the number of elapsed days since the engine oil maintenance monitor function was activated, and if the traveled distance and number of elapsed days exceeds the specified value, it determines that engine oil replacement period is reached.
•  The PCM determines engine oil deterioration using information other than the distance travelled and the number of elapsed days. When the PCM determines engine oil deterioration, it determines that the engine oil replacement period has been reached.
•  When the PCM determines that the engine oil replacement period has been reached, the wrench warning indicator light illumination request signal is sent to the instrument cluster. (See WRENCH INDICATOR LIGHT [SKYACTIV-G 1.5, SKYACTIV-G 2.0, SKYACTIV-G 2.5].)
