CAMSHAFT POSITION (CMP) SENSOR CONSTRUCTION/OPERATION [MZR 1.6]
id0140j7105000
• Installed to the cylinder head cover.
am3zzn00006512
• A GMR element-type sensor has been adopted.

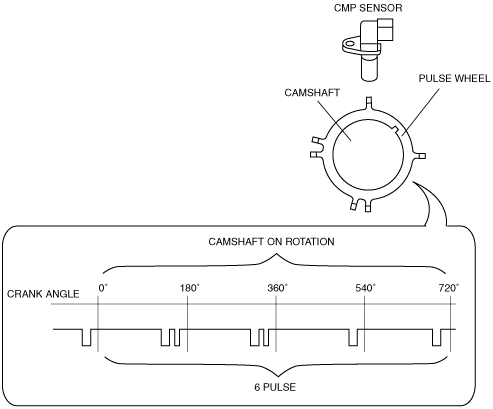

• The resistance value, which fluctuates according to the rotation angle of the camshaft on the intake side, is output as voltage that has been changed to a rectangular wave form by the processing circuit.
