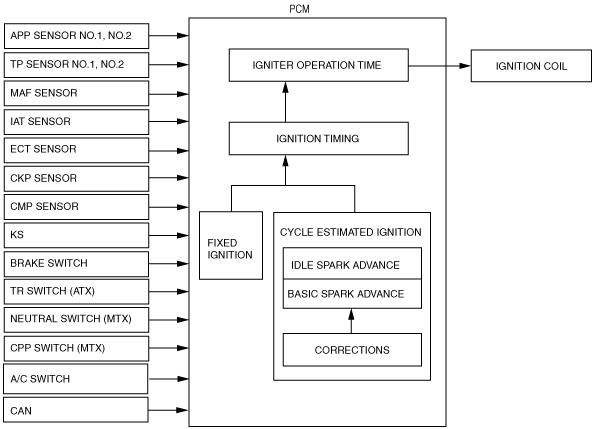

• The PCM determines the engine operation conditions based on input signals from sensors, blocks current to the ignition coils by the calculated ignition timing, and discharges (ignition) the spark plugs based on the effect of electromagnetic mutual induction.
