CRANKSHAFT POSITION (CKP) SENSOR [SKYACTIV-D 1.5]

id0140z5006300


Purpose/Function

•  Detects the crankshaft speed as basic information for mainly determining the fuel injection timing.
•  Detects the crankshaft speed and sends it to the PCM as a CKP signal.

Construction

•  Installed on the side of the cylinder block (right side).
ac3wzn00000761
•  A MR (Magnetic Resistance) element has been adopted (as the detecting element) for detecting the crankshaft speed.

Operation

•  Sends the signal, which fluctuates according to the crankshaft speed, to the PCM.
am2zzn00003613

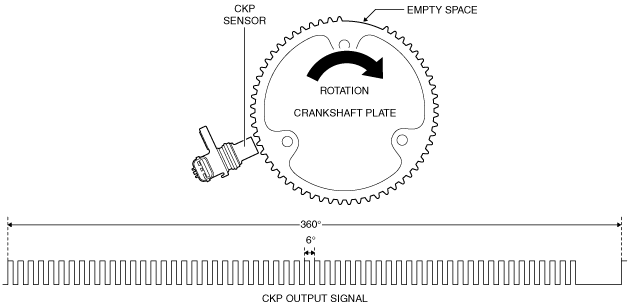

CKP sensor characteristic

am2zzn00003614

Fail-safe

DTC No.

Fail-safe function
P0016:00
•  PCM restricts engine-transaxle integration control. (ATX)
•  Inhibits engine-stop by operating the i-stop function.
P0336:00
•  Inhibits engine-stop by operating the i-stop function.
P0337:00
•  PCM restricts engine torque.
•  Inhibits the EGR control.
•  Inhibits the auto DPF regeneration control.
•  Fully open the intake shutter valve.
•  Inhibits the compulsory DPF regeneration control.
•  PCM restricts engine-transaxle integration control. (ATX)
•  Inhibits engine-stop by operating the i-stop function.
P0339:00
•  Inhibits engine-stop by operating the i-stop function.
