CAMSHAFT POSITION (CMP) SENSOR [SKYACTIV-D 1.5]

id0140z5006700

Purpose/Function

• Detects the camshaft speed as basic information for mainly determining the fuel injection timing.

• Detects the camshaft speed and sends it to the PCM as a CMP signal.

Construction

• Installed on the cylinder head.

ac3wzn00000762

• A MR (Magnetic Resistance) element has been adopted (as the detecting element) for detecting the camshaft speed.

Operation

• Sends the signal, which fluctuates according to the camshaft speed, to the PCM.

ac3wzn00000763

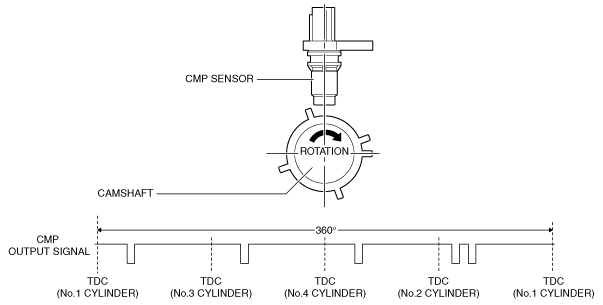

CMP sensor characteristic

adejjn00004115

Fail-safe

DTC No.

Fail-safe function

P0016:00

• PCM restricts engine-transaxle integration control. (ATX)

• Inhibits engine-stop by operating the i-stop function.
