MASS AIR FLOW (MAF) SENSOR [SKYACTIV-D 1.5]

id0140z5007000


Purpose/Function

•  Detects the intake airflow amount after it passes through the air cleaner as basic information for mainly determining the fuel injection amount.
•  Detects the intake airflow amount after it passes through the air cleaner and sends to the PCM as an intake airflow amount signal.

Construction

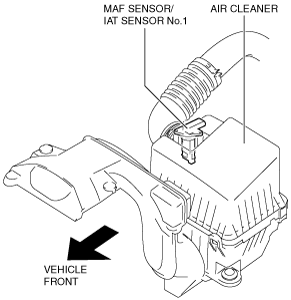

•  Installed on the air cleaner.
am3zzn00005140
•  A hot film has been adopted as the detecting element for detecting the intake airflow amount.
•  IAT sensor No.1 is integrated.
am3zzn00005141

Operation

•  Sends the signal, which fluctuates according to the intake airflow amount, to the PCM.
am2zzn00003621

MAF sensor characteristic

am2zzn00003622

Fail-safe

DTC No.

Fail-safe function
P0101:00
•  PCM restricts engine torque.
•  Inhibits the EGR control.
•  Inhibits the auto DPF regeneration control.
•  Inhibits the compulsory DPF regeneration control.
•  Inhibits engine-stop by operating the i-stop function.
P0102:00
P0103:00
