ACCELERATOR PEDAL POSITION (APP) SENSOR [SKYACTIV-D 1.5]

id0140z5007300


Purpose/Function

•  Detects the accelerator pedal depression amount as basic information for mainly determining the fuel injection amount.
•  Detects the accelerator pedal depression amount and sends it to the PCM as an accelerator pedal opening angle signal.

Construction

•  Built into the accelerator pedal.
am2zzn00003629
•  A Hall element has been adopted as the detecting element for detecting the accelerator pedal depression amount.
•  The APP sensor has a main sensor (No.1) and a sub sensor (No.2) for improved detection accuracy.

Operation

•  Sends the signal, which fluctuates according to the accelerator pedal depression amount, to the PCM.
am2zzn00003630

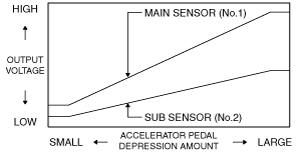

APP sensor characteristic

am2zzn00003631

Fail-safe

DTC No.

Fail-safe function
P2122:00
•  Limits the engine torque or the upper limit of the engine speed.
•  Inhibits engine-stop by operating the i-stop function.
P2123:00
P2127:00
P2128:00
P2138:00
•  Limits the engine torque or the upper limit of the engine speed.
•  Inhibits the EGR control.
•  Inhibits the auto DPF regeneration control.
•  Inhibits engine-stop by operating the i-stop function.
