i-stop OFF SWITCH [SKYACTIV-D 1.5]

id0140z5008000

Purpose/Function

• i-stop control is inhibited by turning on the i-stop OFF switch.

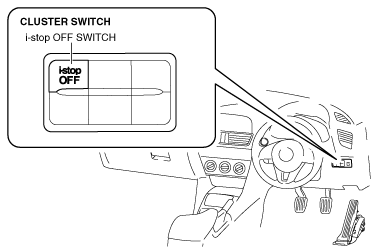

Construction

• Installed to the cluster switch.

am3zzn00006128

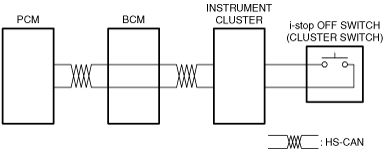

Operation

• The i-stop control is inhibited when the i-stop OFF switch on-signal from the instrument cluster is received.

ac3wzn00000771

Fail-safe

• Not applicable
