MAIN RELAY [SKYACTIV-D 1.5]
id0140z5008300
Purpose/Function
• Supplies power to each part.
• Supplies battery voltage to each part based on the signals from the PCM even though the ignition is switched on or off.
Construction

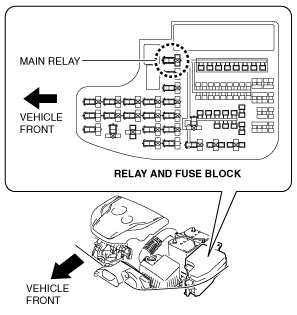

• Installed in the relay and fuse block.
Operation
• After the contact point is on battery voltage is supplied to the coil based on the signals from the PCM.
Fail-safe
• Not applicable
