ENGINE CONTROL SYSTEM [SKYACTIV-D 1.5]

id0140z5139900

Outline

• Glow control has been adopted to improve engine startability and diesel particulate filter regeneration performance.

― Glow control module adopted

• Engine hydraulic pressure switching control has been adopted reducing engine load.

― Engine oil solenoid valve adopted

• Coolant control valve control has been adopted for improved fuel economy.

― Coolant control valve adopted

• Exhaust gas recirculation (EGR) system has been adopted which achieves cleaner exhaust emissions and improved fuel efficiency.

• Boost control has been adopted for improved vehicle acceleration performance, fuel economy, and environmental performance.

― Variable geometry turbocharger adopted

― Speed sensor assy (turbocharger with variable turbine geometry) adopted

• Generator output control adopted, fuel economy/idling stability improved.

― Current sensor adopted

• LIN communication has been adopted to the current sensor for simplified wiring harnesses.

• i-stop control has been adopted for improved fuel economy and reduce exhaust gas and idling noise.

• DC-DC converter control has been adopted for improved power supply stability.

― DC-DC converter adopted

Structural View

Input device

am3zzn00005149

*1 :Check connector, IG1 relay

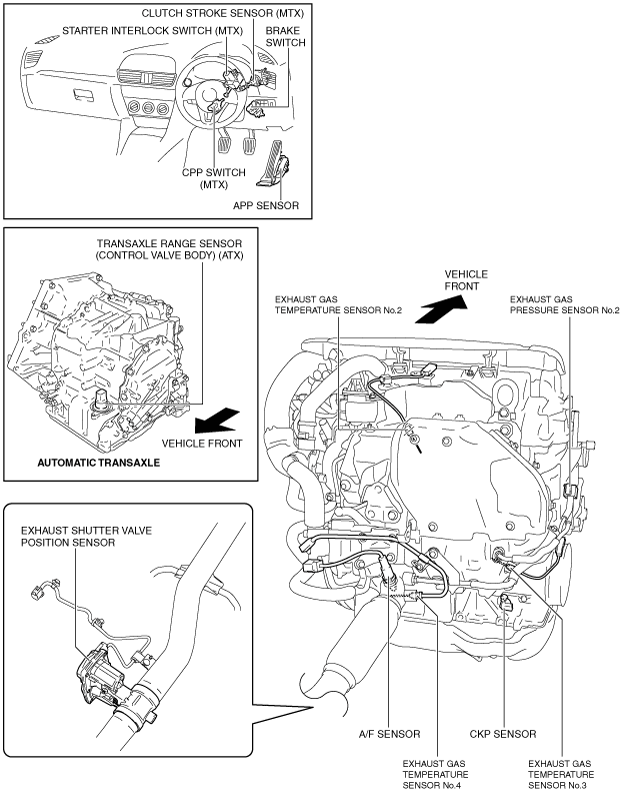

am3zzn00006144

Output device

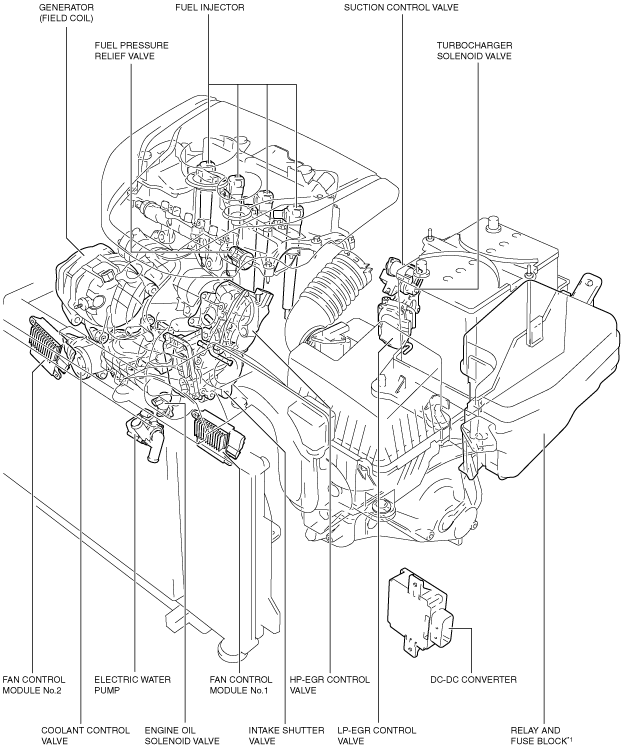

am3zzn00005151

*1 :Main relay, cooling fan relay No.1, No.2, A/C relay, starter relay, blow-by heater relay

am3zzn00005152

System Diagram

Input device

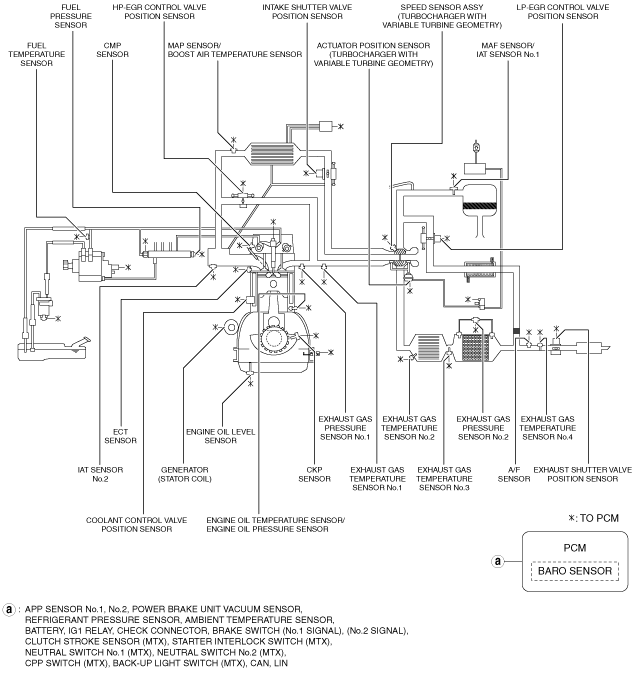

am3zzn00005153

Output device

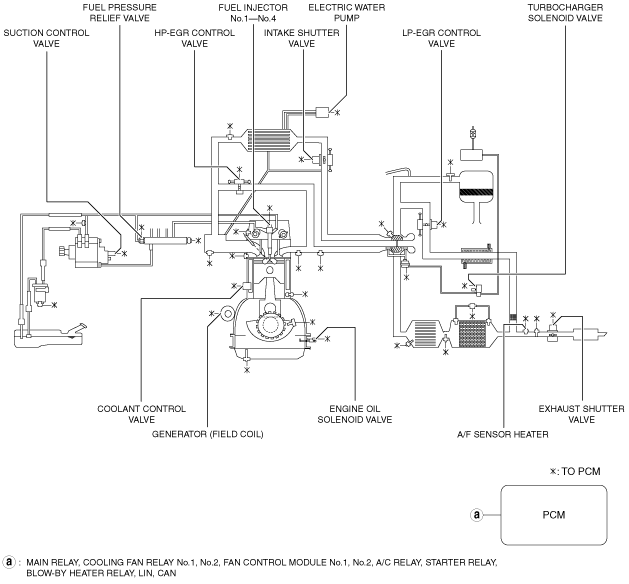

am3zzn00005154

System Wiring Diagram

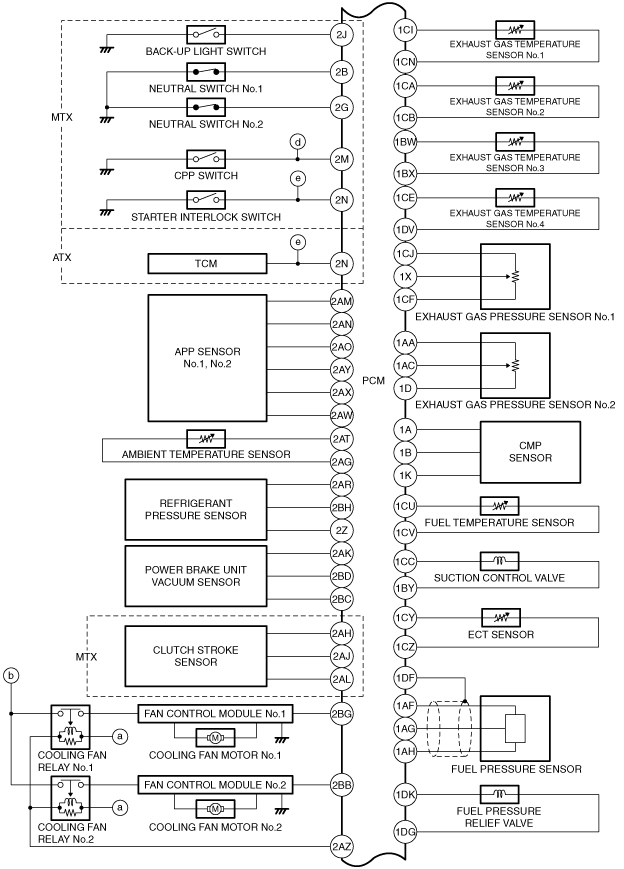

am3zzn00005155

am3zzn00005156

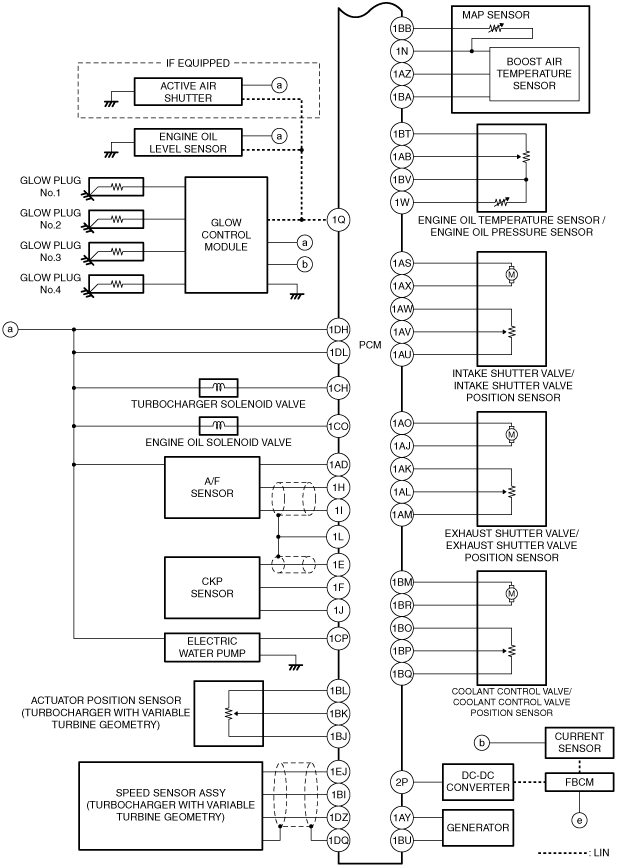

am3zzn00005157

Block Diagram

am3zzn00005158

*1 :DSC HU/CM, TCM (ATX), EPS control module, SAS control module, instrument cluster, front body control module (FBCM), rear body control module (RBCM), start stop unit

*2 :Glow control module, current sensor, engine oil level sensor

*3 :Instrument cluster (master warning light, glow indicator light, diesel particulate filter indicator light, i-stop warning light (amber)/i-stop indicator light (green), i-stop indicator alarm/i-stop warning alarm)

Relation Chart

• Each control system and their related input and output parts are as follows.

×: Applicable

Item	MAIN RELAY CONTROL	IDLE SPEED CONTROL	BOOST CONTROL	FUEL INJECTION AMOUNT CONTROL	MULTIPLE FUEL INJECTION CONTROL	FUEL INJECTION TIMING CONTROL	FUEL PRESSURE CONTROL	INTAKE SHUTTER VALVE CONTROL	EXHAUST SHUTTER VALVE CONTROL	COOLANT CONTROL VALVE CONTROL	ELECTRIC WATER PUMP CONTROL	GLOW CONTROL
Input device
Check connector					×
IG1 relay	×		×	×	×	×		×	×	×	×	×
Brake switch (No.1 signal)
Brake switch (No.2 signal)
MAP sensor		×	×	×	×	×		×				×
Boost air temperature sensor											×
MAF sensor		×	×	×	×	×	×	×	×
IAT sensor No.1		×	×	×	×	×	×	×	×	×	×	×
IAT sensor No.2				×	×	×	×	×	×		×
ECT sensor		×	×	×	×	×	×	×	×	×		×
Fuel temperature sensor				×	×	×	×
APP sensor No.1, No.2		×	×	×	×	×	×	×	×	×	×	×
Fuel pressure sensor		×		×	×	×	×
Intake shutter valve position sensor		×						×				×
Exhaust shutter valve position sensor									×
Coolant control valve position sensor										×
HP-EGR control valve position sensor		×	×				×					×
LP-EGR control valve position sensor			×				×					×
Exhaust gas pressure sensor No.1			×	×	×	×	×
Exhaust gas pressure sensor No.2				×	×	×	×
BARO sensor		×	×	×	×	×	×	×	×			×
Battery			×							×	×	×
Refrigerant pressure sensor		×
Exhaust gas temperature sensor No.1			×	×	×	×	×
Exhaust gas temperature sensor No.2				×	×	×	×
Exhaust gas temperature sensor No.3				×	×	×	×
Exhaust gas temperature sensor No.4			×						×
Engine oil temperature sensor										×
Engine oil pressure sensor		×
Actuator position sensor (turbocharger with variable turbine geometry)			×
Speed sensor assy (turbocharger with variable turbine geometry)			×	×
Ambient temperature sensor
A/F sensor				×	×	×	×
Power brake unit vacuum sensor
CKP sensor	×	×	×	×	×	×	×	×	×	×	×	×
CMP sensor		×		×	×	×	×	×	×		×
Back-up light switch (MTX)		×		×	×	×
Neutral switch No.1 (MTX)		×	×	×	×	×
CPP switch (MTX)		×		×	×	×		×	×
Starter interlock switch (MTX)				×	×	×
Neutral switch No.2 (MTX)				×	×	×
Clutch stroke sensor (MTX)		×
Generator (stator coil)				×	×	×	×
CAN^*1		×	×	×	×	×	×	×	×	×	×	×
LIN^*2												×
Output device
Intake shutter valve		×						×
Exhaust shutter valve									×
HP-EGR control valve		×
LP-EGR control valve
Fuel pressure relief valve							×
Main relay	×
Turbocharger solenoid valve			×
A/F sensor heater
Starter relay
DC-DC converter
Generator (Field coil)
A/C relay
Fan control module No.1, No.2
Cooling fan relay No.1, No.2
Engine oil solenoid valve		×
Suction control valve		×					×
Fuel injector No.1—No.4		×		×	×	×
Blow-by heater relay
Electric water pump											×
Coolant control valve										×
LIN^*2												×
CAN^*3												×

*1 :DSC HU/CM, TCM (ATX), EPS control module, SAS control module, instrument cluster, front body control module (FBCM), rear body control module (RBCM), start stop unit

*2 :Glow control module, engine oil level sensor

×: Applicable

Item	EGR CONTROL	AIR FUEL RATIO (A/F) SENSOR HEATER CONTROL	DIESEL PARTICULATE FILTER REGENERATION CONTROL	A/C CUT-OFF CONTROL	ELECTRICAL FAN CONTROL	STARTER CUT-OFF CONTROL	GENERATOR CONTROL	RUN DRY PREVENTION (RDP) CONTROL	BLOW-BY HEATER CONTROL	i-stop CONTROL	DC-DC CONVERTER CONTROL	ENGINE OIL CONTROL
Input device
Check connector			×
IG1 relay				×	×	×				×	×
Brake switch (No.1 signal)				×						×
Brake switch (No.2 signal)										×
MAP sensor	×		×
Boost air temperature sensor			×
MAF sensor	×		×
IAT sensor No.1	×		×							×
IAT sensor No.2	×	×	×
ECT sensor	×	×	×	×	×	×				×		×
Fuel temperature sensor
APP sensor No.1, No.2	×		×	×						×		×
Fuel pressure sensor			×							×
Intake shutter valve position sensor
Exhaust shutter valve position sensor			×
Coolant control valve position sensor
HP-EGR control valve position sensor	×		×
LP-EGR control valve position sensor	×		×
Exhaust gas pressure sensor No.1	×		×
Exhaust gas pressure sensor No.2			×
BARO sensor	×		×							×
Battery		×			×		×			×		×
Refrigerant pressure sensor				×	×
Exhaust gas temperature sensor No.1	×		×
Exhaust gas temperature sensor No.2			×
Exhaust gas temperature sensor No.3			×		×
Exhaust gas temperature sensor No.4	×	×	×
Engine oil temperature sensor			×									×
Engine oil pressure sensor	×		×
Actuator position sensor (turbocharger with variable turbine geometry)			×
Speed sensor assy (turbocharger with variable turbine geometry)
Ambient temperature sensor									×
A/F sensor	×		×
Power brake unit vacuum sensor										×
CKP sensor	×	×	×	×		×	×		×	×		×
CMP sensor	×									×
Back-up light switch (MTX)										×
Neutral switch No.1 (MTX)			×	×		×				×
CPP switch (MTX)	×		×							×
Starter interlock switch (MTX)						×				×
Neutral switch No.2 (MTX)										×
Clutch stroke sensor (MTX)										×
Generator (stator coil)
CAN^*1	×		×	×	×	×	×	×	×	×	×	×
LIN^*2							×
Output device
Intake shutter valve			×							×
Exhaust shutter valve										×
HP-EGR control valve	×		×							×
LP-EGR control valve	×		×							×
Fuel pressure relief valve
Main relay
Turbocharger solenoid valve			×
A/F sensor heater		×
Starter relay						×				×
DC-DC converter											×
Generator (Field coil)							×			×
A/C relay				×						×
Fan control module No.1, No.2					×
Cooling fan relay No.1, No.2					×
Engine oil solenoid valve			×									×
Suction control valve
Fuel injector No.1—No.4			×					×		×
Blow-by heater relay									×
Electric water pump
Coolant control valve
LIN^*2			×							×
CAN^*3			×						×	×

*1 :DSC HU/CM, TCM (ATX), EPS control module, SAS control module, instrument cluster, front body control module (FBCM), rear body control module (RBCM), start stop unit

*2 :Glow control module, current sensor, engine oil level sensor
