ENGINE OIL LEVEL MONITOR [SKYACTIV-D 1.5]

id0140z5661100

Purpose/Function

• If the engine oil level is detected and it is not within the specified value, the wrench indictor light in the instrument cluster illuminates.

• The PCM detects the engine oil level based on the engine oil level sensor signal.

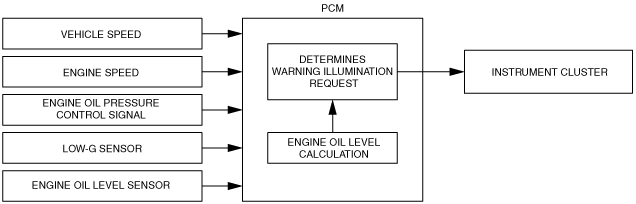

Block Diagram

• The engine oil level warning indication is built into the instrument cluster.

ac3wzn00000832

Operation

• The PCM calculates the engine oil level based on the engine oil level sensor signal and the vehicle driving information.

• If the PCM determines that the engine oil level is not within the specified value, it sends an engine oil level warning indication (wrench indicator light) request to the instrument cluster.
