MASS AIR FLOW (MAF) SENSOR [SKYACTIV-D 2.2]

id0140z7007000


Purpose/Function

•  Detects the intake airflow amount after it passes through the air cleaner as basic information for mainly determining the fuel injection amount.
•  Detects the intake airflow amount after it passes through the air cleaner and sends to the PCM as an intake airflow amount signal.

Construction

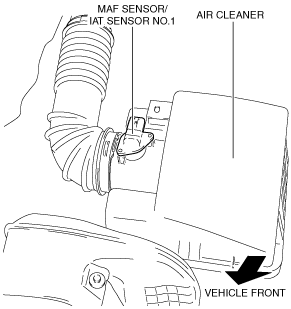

•  Installed on the air cleaner.
am6zzn00001862
•  A hot film has been adopted as the detecting element for detecting the intake airflow amount.
•  IAT sensor No.1 is integrated.
am3zzn00003534

Operation

•  Sends the signal, which fluctuates according to the intake airflow amount, to the PCM.
am3zzn00003535

MAF sensor characteristic

am3zzn00003536

Fail-safe

DTC No.

Fail-safe function
P0102:00
•  PCM restricts engine torque.
•  Inhibits the EGR control.
•  Inhibits the diesel particulate filter regeneration control.
•  The fast idle up correction for the idle speed control is inhibited.
•  Inhibits engine-stop by operating the i-stop function.
•  PCM restricts engine-transaxle integration control.
P0103:00
•  PCM restricts engine torque.
•  Inhibits the EGR control.
•  Inhibits the diesel particulate filter regeneration control.
•  The fast idle up correction for the idle speed control is inhibited.
•  Inhibits engine-stop by operating the i-stop function.
•  PCM restricts engine-transaxle integration control.
