A/C RELAY [SKYACTIV-D 2.2]
id0140z7256300
Purpose/Function
• Supplies power to magnetic clutch.
• Supplies battery voltage to magnetic clutch based on the signals from the PCM.
Construction

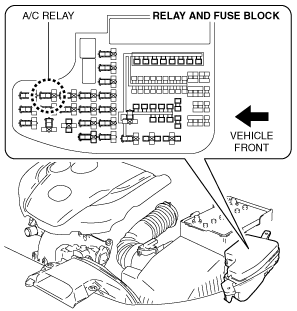

• Installed in the relay and fuse block.
Operation
• The contact point is on when the battery voltage is supplied to the coil based on the signal from the PCM, and the battery voltage is supplied to the magnetic clutch.
Fail-safe
• Function not equipped.
