IDLE SPEED CONTROL [SKYACTIV-D 2.2]

id0140z7952300


Outline

•  The PCM controls the fuel injection amount so that the target idle speed according to the engine operation conditions is obtained

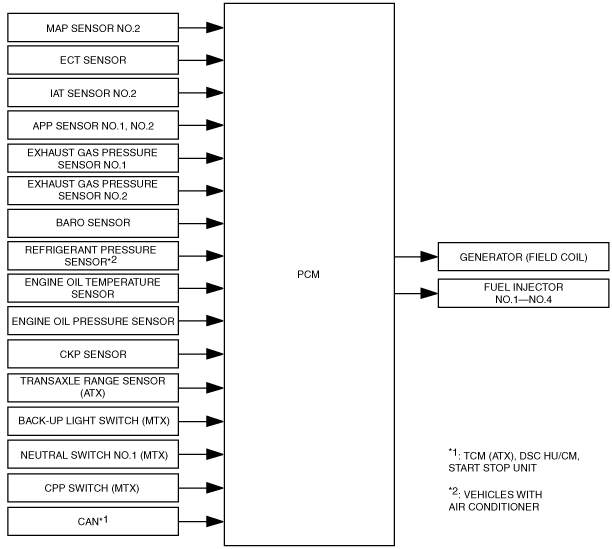

Block Diagram

ac5wzn00002121

Operation

•  The fuel injection amount is controlled so that the actual idle speed is close to the target idle speed.
•  The target idle speed is set under various conditions and consists mainly of the following control items.

Item

Control description

Target idle speed
Engine speed control during normal operation
The actual idle speed conforms to the target idle speed during normal idling.
800 rpm
Speed control during fast idle increase
The target engine speed is increased for early activation of the catalytic converter after a cold engine start.
1,750 rpm
Engine speed control during warm-up
Approaches the target engine speed during warm-up based on the input signal from ECT sensor and IAT sensor.
750―1,500 rpm
Engine speed control during fuel injection amount learning
During fuel injection amount learning, the engine speed is controlled so that it matches the target engine speed.
During auto-learning control
775 rpm
During manual learning control
775―2,000 rpm
DPF regeneration control
Controls the engine speed during DPF regeneration control so that it matches the target engine speed.
Auto DPF regeneration control
775―925 rpm
Compulsory DPF regeneration control
1,750 rpm*

*  :If there is incorrect combustion of soot during diesel particulate filter regeneration, the exhaust gas temperature increases which may cause damage to the diesel particulate filter. In this case, post injection is stopped and the engine speed increases to 2,500 rpm. Due to this, low temperature exhaust gas is sent to the oxidation catalytic converter at high speed and the diesel particulate filter is cooled to prevent damage.
•  The A/C operation information from the A/C pressure sensor is input to prevent the idle speed from decreasing by A/C load. The fuel injection amount is corrected to maintain idle speed when the A/C load is applied.
In addition, the fuel injection amount is corrected to prevent a decrease in speed when the electrical load is applied.
