REAR CROSSMEMBER REMOVAL/INSTALLATION

id021400801000

Warning
•  Verify that the rear crossmember is securely supported by a jack. If the rear crossmember falls off, it can cause serious injury or death, and damage to the vehicle.
Caution
•  Performing the following procedures could cause an open circuit in the rear ABS wheel-speed sensor wiring harness if it is pulled by mistake. Before servicing, disconnect the rear ABS wheel-speed sensor and set it aside so that the wiring harness will not be pulled by mistake.
Note
•  Mark the position before removing the rear upper arm.
•  Align the rear crossmember and rear upper arm markings when installing the rear upper arm.
•  Tighten the rear upper arm inner bolt completely before installing the rear crossmember component to the vehicle.

1.  Switch the ignition ON (engine off). (With electric parking brake)

2.  Release the electric parking brake. (With electric parking brake)

3.  Switch the ignition off. (With electric parking brake)

4.  Disconnect the negative battery cable. (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION [SKYACTIV-G 1.5, SKYACTIV-G 2.0, SKYACTIV-G 2.5].) (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION [SKYACTIV-D 1.5].) (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION [SKYACTIV-D 2.2].) (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION [MZR 1.6].)

5.  Remove the wheels and tires. (See WHEEL AND TIRE REMOVAL/INSTALLATION.)

6.  Disconnect the wiring harness clips and connector installed to the rear crossmember.

am3uuw00011035

7.  Remove the auto leveling sensor. (See AUTO LEVELING SENSOR REMOVAL/INSTALLATION.)

am3uuw00011342

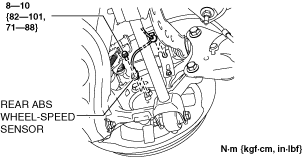

8.  Disconnect the rear ABS wheel-speed sensor wiring harness installed to the hub support and set it aside. (Without electric parking brake)

am3zzw00019367

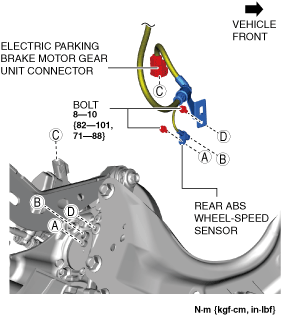

9.  Disconnect the rear ABS wheel-speed sensor wiring harness and the electric parking brake motor gear unit connector and set it aside so that it does not interfere with the servicing. (With electric parking brake)

am3zzw00018284

10.  Jack up the vehicle to the unloaded condition, and support the rear trailing link component using a jack.

ac5wzw00002868

11.  Align the rear crossmember component and rear upper arm and mark them.

am3zzw00020969

12.  Remove the presilencer. (MZR 1.6) (See EXHAUST SYSTEM REMOVAL/INSTALLATION [MZR 1.6].)

13.  Remove the TWC. (SKYACTIV-G 1.5, SKYACTIV-G 2.0, SKYACTIV-G 2.5) (See EXHAUST SYSTEM REMOVAL/INSTALLATION [SKYACTIV-G 1.5, SKYACTIV-G 2.0, SKYACTIV-G 2.5].)

14.  Remove the middle pipe. (SKYACTIV-D 1.5, SKYACTIV-D 2.2) (See EXHAUST SYSTEM REMOVAL/INSTALLATION [SKYACTIV-D 1.5].) (See EXHAUST SYSTEM REMOVAL/INSTALLATION [SKYACTIV-D 2.2].)

15.  Remove the rear lateral link. (See REAR LATERAL LINK REMOVAL/INSTALLATION.)

16.  Remove the rear coil spring. (See REAR COIL SPRING REMOVAL/INSTALLATION.)

17.  Remove the rear lower arm. (See REAR LOWER ARM REMOVAL/INSTALLATION.)

18.  Remove the protector. (With protector)

ac4ccw00000689

19.  Remove in the order indicated in the table.

20.  Install in the reverse order of removal. (See Suspension Links Installation Note.)

21.  Inspect the wheel alignment and adjust it if necessary. (See REAR WHEEL ALIGNMENT.)

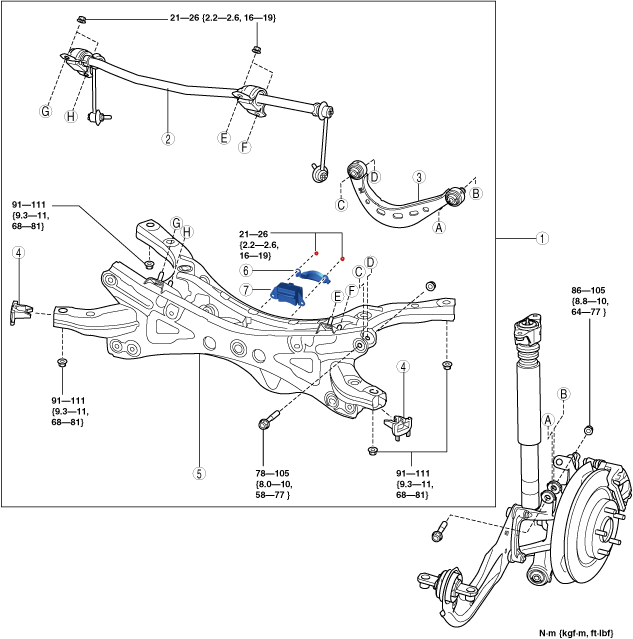

am3zzw00021012

1
Rear crossmember component
(See Rear Crossmember Component Removal Note.)
(See Rear Crossmember Component Installation Note.)
2
Rear stabilizer component
3
Rear upper arm
(See REAR UPPER ARM REMOVAL/INSTALLATION.)
4
Rear crossmember mudguard
(See Rear Crossmember Mudguard Installation Note.)
5
Rear crossmember
(See Rear Crossmember Installation Note.)
6
Insulator (With Dynamic damper)
7
Dynamic damper (With Dynamic damper)


Rear Crossmember Component Removal Note

Warning
•  Verify that the rear crossmember is securely supported by a jack. If the rear crossmember falls off, it can cause serious injury or death, and damage to the vehicle.

1.  Support the rear crossmember with the jack and remove the nuts

am3uuw00011037

2.  Remove the rear crossmember component.


Suspension Links Installation Note

1.  When installing the joint sections with rubber bushings, perform the following procedures.

(1)  Temporarily tighten the bolts and nuts with the vehicle lifted up.
(2)  Lower the vehicle to the ground and tighten the bolts and nuts to the specified torque.


Rear Crossmember Installation Note

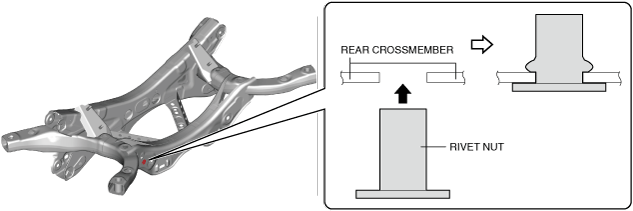

1.  When replacing the rear crossmember, install the rivet nut using a rivet nut tool.

am3zzw00018021


Rear Crossmember Mudguard Installation Note

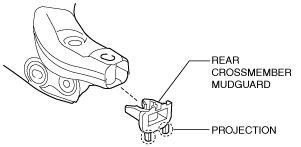

1.  Install with the rear crossmember mudguard projection pointed downward.

am3uuw00012099


Rear Crossmember Component Installation Note

Warning
•  Verify that the rear crossmember is securely supported by a jack. If the rear crossmember falls off, it can cause serious injury or death, and damage to the vehicle.

1.  Support the rear crossmember component and install the rear crossmember.

am3uuw00011037
