REAR SHOCK ABSORBER REMOVAL/INSTALLATION

id021400801300

1.  Remove the wheel and tire. (See WHEEL AND TIRE REMOVAL/INSTALLATION.)

2.  Remove in the order indicated in the table.

3.  Install in the reverse order of removal. (See Suspension Link Installation Note.)

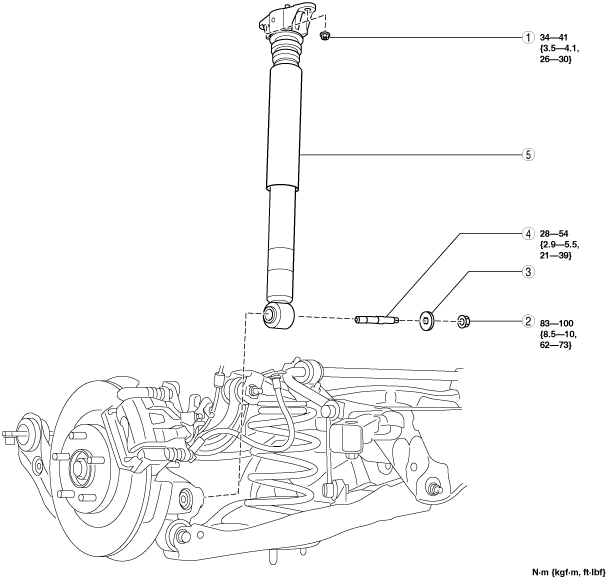

am3uuw00011050

1	Rear shock absorber upper nut (See Rear Shock Absorber Upper Nut Installation Note.)
2	Rear shock absorber lower nut
3	Washer
4	Stud bolt
5	Rear shock absorber

Suspension Link Installation Note

1.  When installing the joint section with a rubber bushing, perform the following procedures.

(1)  Temporarily tighten the stud bolt and nut with the vehicle lifted up.

(2)  Lower the vehicle to the ground and tighten the stud bolt and nut to the specified torque.

Rear Shock Absorber Upper Nut Installation Note

1.  Lift up the rear lower arm using a jack and install the rear shock absorber upper nuts.
