FOREWORD [ANTILOCK BRAKE SYSTEM (ABS)]

id040308804000

• If there is any vehicle malfunction complaint lodged by a customer, perform malfunction diagnosis according to the troubleshooting procedure.

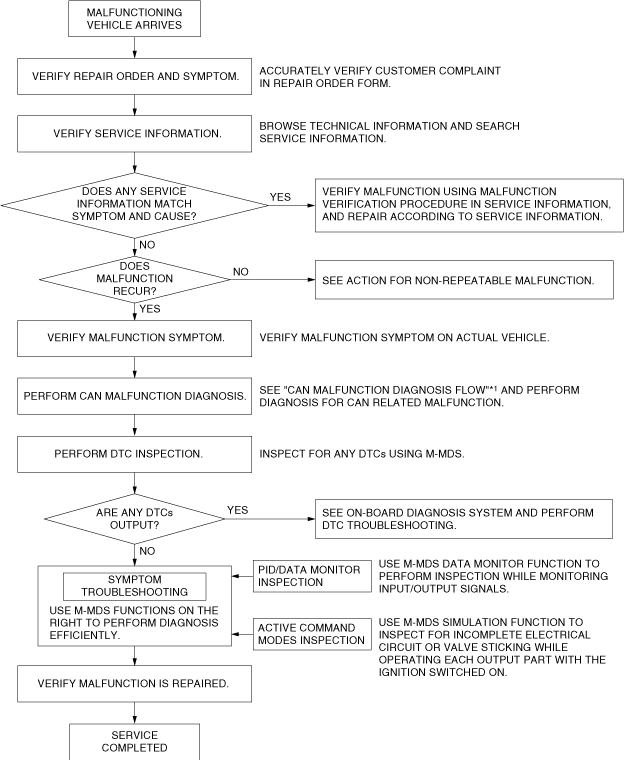

Troubleshooting Procedure

am3zzw00011448

*1 :Refer to MULTIPLEX COMMUNICATION SYSTEM. (See CONTROLLER AREA NETWORK (CAN) MALFUNCTION DIAGNOSIS FLOW [MZR 1.6 (L.H.D.)].) (See CONTROLLER AREA NETWORK (CAN) MALFUNCTION DIAGNOSIS FLOW [MZR 1.6 (R.H.D.)].)

Action for non-repeatable malfunction

• If the malfunction does not recur, verify the malfunction cause by performing the following actions:

― Based on the repair order form, attempt to drive the vehicle or perform tests to replicate the malfunction, record the data at that time, and detect the malfunction cause.

― Shake the wiring harness or connector of the electrical component which is suspected to be the cause of the malfunction, and inspect for malfunction or occurrence of any DTCs.

am3uuw00008131

― Inspect the female terminals on the connector of the electric component which is suspected to be the cause of the malfunction for poor connection.

am3zzw00013963
