REAR BRAKE (DISC)


id041100200900


Purpose/Function

•  Large diameter, solid-disc type front brakes with a 265 mm {10.4 in} diameter and 9.0 mm {0.35 in} thickness have been adopted, improving braking force and fade resistance.

Construction


Mechanical design type parking brake

Note

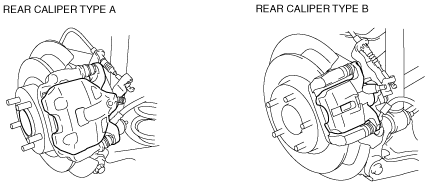

•  Verify the shape of the caliper shown in the figure to determine type A or B.
am3zzn00004745

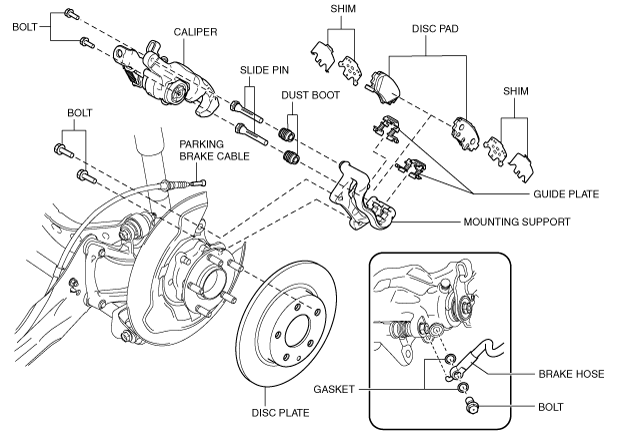

Rear caliper type A

am3uun00003045

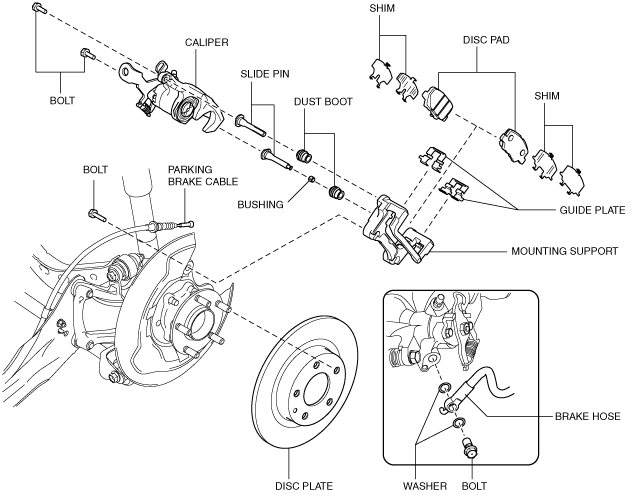

Rear caliper type B

am3zzn00004705


Electric parking brake

am3zzn00006198


Operation

•  When brake fluid is applied, the piston equipped on one side of the caliper is pushed out and the brake pad is pushed against the disc plate. At the same time, the caliper body moves in the direction opposite of the direction in which the piston is pushed out so as to push the brake pad on the other side and generate brake force.
