DISC PAD (FRONT) REPLACEMENT

id041100800700

Note

• Verify the shape of the caliper shown in the figure to determine type A or B.

am3zzw00015899

1. Remove the wheel and tire. (See WHEEL AND TIRE REMOVAL/INSTALLATION.)

2. Remove in the order indicated in the table.

3. Install in the reverse order of removal.

4. After installation, depress the brake pedal a few times, rotate the wheel by hand, and verify that the brake does not drag.

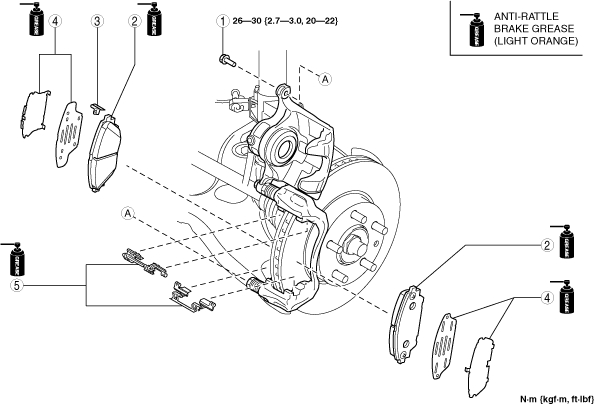

Front caliper type A

am3zzw00019707

1

Caliper installation bolt

(See Caliper Installation Bolt Removal Note.)

(See Disc Pad, Caliper Installation Bolt Installation Note.)

2

Disc pad

(See Disc Pad, Caliper Installation Bolt Installation Note.)

3

Wear indicator

4

Shim

5

Guide plate

(See Guide Plate Installation Note (Front caliper type A only).)

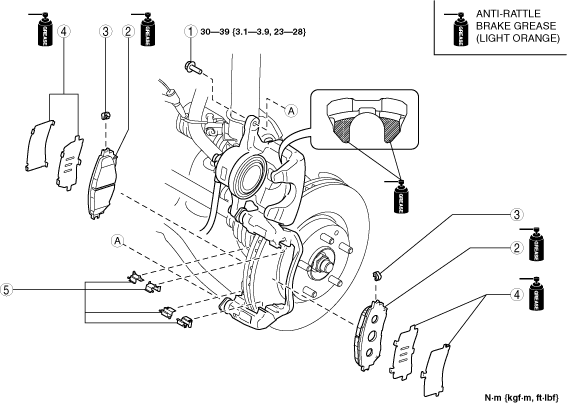

Front caliper type B

am3zzw00020288

Caliper Installation Bolt Removal Note

1. Remove the caliper installation bolt shown in the figure and lift up the caliper.

am3uuw00010877

Guide Plate Installation Note (Front caliper type A only)

1. Install the guide plate as shown in the figure.

am3zzw00015900

Caution

• Abnormal noises may occur from the front brake if the guide plate is installed in an abnormal position. When installing the guide plate to the mounting support, install it correctly to the mounting support as shown in the figure.

Disc Pad, Caliper Installation Bolt Installation Note

1. Clean the exposed area of the piston.

2. Push the piston in using the commercially available disc brake expand tool.

am3uuw00010878

3. Install the disc pads to the mounting support.

4. Return the caliper to the original position and install the caliper installation bolt.

1	Caliper installation bolt (See Caliper Installation Bolt Removal Note.) (See Disc Pad, Caliper Installation Bolt Installation Note.)
2	Disc pad (See Disc Pad, Caliper Installation Bolt Installation Note.)
3	Wear indicator
4	Shim
5	Guide plate (See Guide Plate Installation Note (Front caliper type A only).)
