ABS


id041300183700


Outline

•  Electronic Brakeforce Distribution (EBD) has been adopted for improved safety.
•  The ABS HU/CM, integrating both the hydraulic unit (HU) and control module (CM), has been adopted, resulting in a size and weight reduction of the system.
•  An enhanced malfunction diagnosis system made possible by the use of Mazda Modular Diagnostic System (M-MDS) has improved serviceability.

Structural View

am3zzn00004746

Vehicle rear side

am3zzn00004717

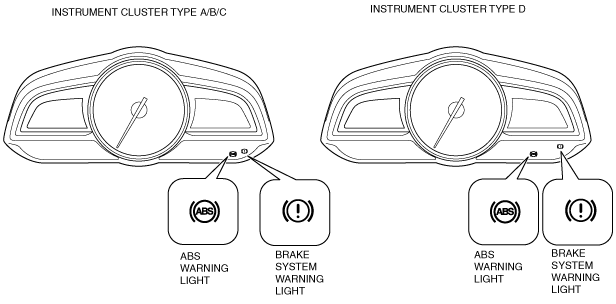

Warning light and indicator light

am3zzn00006207

System Wiring Diagram

am3zzw00015921
