ABS HU/CM REMOVAL/INSTALLATION

id041300801400

Warning

•  If the ABS related parts sensor initialization procedure is not completed, the ABS will not operate properly and it might cause an unexpected accident. Therefore, after replacing the ABS HU/CM, always perform the ABS related parts sensor initialization procedure to insure proper ABS operation.

•  Brake fluid will damage painted surfaces. Be careful not to spill any on painted surfaces. In addition, if there is any brake fluid on the wiring harness, the wire insulation may corrode causing a malfunction such as a short circuit. If brake fluid gets on a painted surface or wiring harness, wash and flush it off completely with water immediately.

Caution

•  The internal parts of the ABS HU/CM could be damaged if dropped. Be careful not to drop the ABS HU/CM. Replace the ABS HU/CM if it is subjected to an impact.

•  Tighten the brake pipe flare nut using any commercially available flare nut wrench.

1.  Disconnect the negative battery cable. (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION [MZR 1.6].)

2.  Remove the bracket.

am3zzw00019813

3.  Remove in the order indicated in the table.

4.  Install in the reverse order of removal.

5.  After installation, add brake fluid, bleed the air, and inspect for fluid leakage. (See BRAKE FLUID AIR BLEEDING.)

6.  Perform the ABS related parts sensor initialization procedure (only when replacing it with a new one). (See ABS RELATED PARTS SENSOR INITIALIZATION PROCEDURE.)

7.  Clear the DTCs from the memory. (See ON-BOARD DIAGNOSIS [ANTILOCK BRAKE SYSTEM (ABS)].)

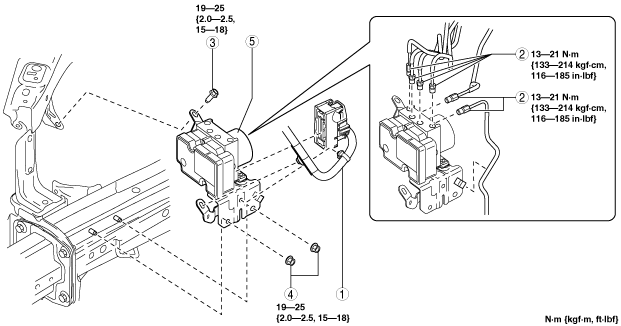

am3zzw00015888

1	Connector (See Connector Removal Note.) (See Connector Installation Note.)
2	Brake pipe (See Brake Pipe Removal Note.) (See Brake Pipe Installation Note.)
3	Bolt
4	Nut
5	ABS HU/CM component

am3zzw00015889

1	Bolt
2	ABS HU/CM
3	Bolt
4	Bracket
5	Mount bolt
6	Mount rubber
7	Bracket

Connector Removal Note

Caution

•  If sand or other particles get into the connector, it may be difficult to remove. To prevent damaging the connector, be careful not to use excessive force when disconnecting it.

1.  Pull the connector cover up in the direction of the arrow while pressing the tabs of the connector cover.

am3zzw00015890

2.  Pull the connector toward the vehicle rear and remove it.

Brake Pipe Removal Note

1.  Place an alignment marks on the brake pipe and ABS HU/CM.

am3zzw00015891

2.  Apply protective tape to the connector to prevent brake fluid from entering.

3.  Disconnect the brake pipes.

Brake Pipe Installation Note

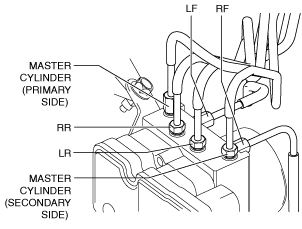

1.  Align the marks made before removal and install the brake pipe to the ABS HU/CM and brake pipe joint referring to the figure.

am3zzw00015892

2.  Tighten the brake pipe to the specified torque using the commercially available flare nut wrench.

Connector Installation Note

1.  Connect the connector and pull the lock lever down in the direction of the arrow.

am3zzw00015893

2.  After connecting the connector, verify that the connector cover is completely pushed in.
