DSC OFF SWITCH INSPECTION

id041500802000

Note
•  The DSC OFF switch is integrated with the cluster switch.
•  For the DSC OFF switch removal/installation, refer to CLUSTER SWITCH REMOVAL/INSTALLATION. (See CLUSTER SWITCH REMOVAL/INSTALLATION.)

Resistance Inspection

1.  Remove the cluster switch. (See CLUSTER SWITCH REMOVAL/INSTALLATION.)

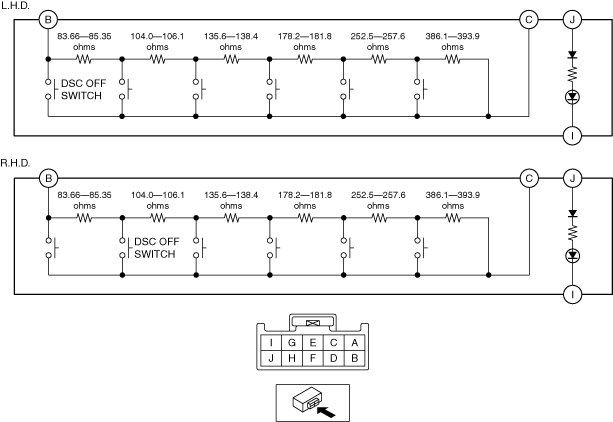

2.  Verify that the resistance between the cluster switch terminals B and C is as indicated in the table.

•  If not as indicated in the table, replace the cluster switch.
am3zzw00019219

TPMS set switch specification

Terminal

Test condition

Resistance (ohms)
B—C
DSC OFF switch pressed
L.H.D.:0
R.H.D.:83.66—85.35
All switches released
1140.06—1163.15


LED Illumination Inspection

1.  Remove the cluster switch. (See CLUSTER SWITCH REMOVAL/INSTALLATION.)

2.  Apply battery positive voltage to cluster switch terminal J, and connect terminal I to ground.

am3zzw00013945

3.  Verify that the LED illuminates.

•  If there is any malfunction, replace the cluster switch.
