TRANSMISSION/TRANSAXLE

id050000100900


Features


Clutch and manual transaxle [F35M-R]

•  F35M-R-type manual transaxle with 5 forward gears and 1 reverse gear has been adopted.


Clutch and manual transaxle [F66M-R] [C66M-R] [D66M-R]

•  A newly developed, F66M-R, C66M-R-type and D66M-R-type manual transaxle (SKYACTIV-MT) with 6 forward gears and 1 reverse gear has been adopted.


Automatic transaxle [FN4A-EL]

•  FN4A-EL-type electronically controlled automatic transaxle with 4 forward gears, 1 reverse gear, and a TCC mechanism has been adopted.
•  A manual shift control has been adopted.


Automatic transaxle [CW6A-EL] [EW6A-EL] [FW6A-EL] [GW6A-EL]

•  A newly developed, CW6A-EL, EW6A-EL, FW6A-EL-type and GW6A-EL-type electronically controlled automatic transaxle (SKYACTIV-DRIVE) with 6 forward gears, 1 reverse gear, and a TCC mechanism has been adopted.
•  Using the existing automatic transaxle as a base, fuel economy improvement, direct feel, and smooth shifting have been thoroughly pursued to make one of the most optimized automatic transaxle.
Main features
―  With the adoption of a full range TCC mechanism, a contribution to low fuel consumption and the direct feel of a manual transaxle have been achieved.
―  A control valve body has been adopted with an integrated TCM and improved responsiveness to achieve smooth and precise shifting.


Specifications


Clutch [F35M-R]

Item

Specifications

Engine type

MZR 1.6
Clutch control
Hydraulic
Clutch pedal
Type
Suspended design
Pedal ratio
4.7
Full stroke (reference)
(mm {in})
140.6 {5.535}
Clutch master cylinder inner diameter
(mm {in})
15.9 {0.626}
Clutch release cylinder inner diameter
(mm {in})
20.64 {0.8126}
Clutch cover
Spring type
Diaphragm
Set load
(N {kgf, lbf})
4,310 {439.5, 968.9}
Clutch disc
Outer diameter
(mm {in})
200 {7.87}
Inner diameter
(mm {in})
130 {5.12}
Clutch fluid type
SAE J1703 or FMVSS116 DOT-3 or DOT-4


Clutch [F66M-R]

Item

Specifications

Engine type

SKYACTIV-G 1.5
Clutch control
Hydraulic
Clutch pedal
Type
Suspended design
Pedal ratio
4.7
Full stroke (reference)
(mm {in})
130.2 {5.126}
Clutch master cylinder inner diameter
(mm {in})
15.9 {0.626}
Clutch release cylinder inner diameter
(mm {in})
20.64 {0.8126}
Clutch cover
Spring type
Diaphragm
Set load
(N {kgf, lbf})
5,200 {530.3, 1169}
Clutch disc
Outer diameter
(mm {in})
215 {8.46}
Inner diameter
(mm {in})
132 {5.20}
Clutch fluid type
European (L.H.D., U.K.) specs.: SAE J1703 or FMVSS116 DOT-3 or DOT-4
Australian, General (L.H.D., R.H.D.) specs.: SAE J1703 or FMVSS116 DOT-3


Clutch [C66M-R]

Item

Specifications

Engine type

SKYACTIV-G 2.0

SKYACTIV-G 2.5

SKYACTIV-D 1.5
Clutch control
Hydraulic
Clutch pedal
Type
Suspended design
Pedal ratio
4.7
Full stroke (reference)
(mm {in})
140.6 {5.535}
Clutch master cylinder inner diameter
(mm {in})
15.9 {0.626}
Clutch release cylinder inner diameter
(mm {in})
20.64 {0.8126}
Clutch cover
Spring type
Diaphragm
Set load
(N {kgf, lbf})
6,400 {652.6, 1439}
7,000 {713.8, 1574}
6,800 {693.4, 1529}
Clutch disc
Outer diameter
(mm {in})
General (L.H.D. R.H.D.) specs.: 230 {9.06} or 240 {9.45}
European (L.H.D. U.K.) specs.: 240 {9.45}
Australian specs.: 230 {9.06}
239 {9.41}
240 {9.45}
Inner diameter
(mm {in})
155 {6.10}
Clutch fluid type
European (L.H.D., U.K.) specs.: SAE J1703 or FMVSS116 DOT-3 or DOT-4
Australian, General (L.H.D., R.H.D.) specs.: SAE J1703 or FMVSS116 DOT-3


Clutch [D66M-R]

Item

Specifications

Engine type

SKYACTIV-D 2.2
Clutch control
Hydraulic
Clutch pedal
Type
Suspended design
Pedal ratio
4.7
Full stroke (reference)
(mm {in})
140.6 {5.535}
Clutch master cylinder inner diameter
(mm {in})
15.9 {0.626}
Clutch release cylinder inner diameter
(mm {in})
20.64 {0.8126}
Clutch cover
Spring type
Diaphragm
Set load
(N {kgf, lbf})
10,900 {1,111.5, 2,450.4}
Clutch disc
Outer diameter
(mm {in})
258 {10.2}
Inner diameter
(mm {in})
160 {6.30}
Clutch fluid type
SAE J1703 or FMVSS116 DOT-3 or DOT-4


Manual Transaxle [F35M-R]

Item

Specifications

Engine type

MZR 1.6
Transaxle control
Floor-shift
Operation system
Cable
Shift assist
Forward
Synchromesh
Reverse
Synchromesh
Gear ratio
1GR
3.416
2GR
1.842
3GR
1.218
4GR
0.918
5GR
0.731
Reverse
3.214
Final gear ratio
4.388
Manual transaxle oil
Grade
API service GL-4
Viscosity
All season
SAE 75W-80
Capacity
(approx. quantity)
(L {US qt, Imp qt})
2.91 {3.07, 2.56}


Manual Transaxle [F66M-R]

Item

Specifications

Engine type

SKYACTIV-G 1.5
Transaxle control
Floor-shift
Operation system
Cable
Shift assist
Forward
Synchromesh
Reverse
Synchromesh
Gear ratio
1GR
3.583
2GR
1.904
3GR
1.290
4GR
1.028
5GR
0.837
6GR
0.680
Reverse
3.454
Final gear ratio
European (L.H.D., U.K.) specs.: 4.105
General (L.H.D., R.H.D.) specs.: 4.388
Manual transaxle oil
Grade
API service GL-4
Viscosity
All season
SAE 75W-80
Capacity
(approx. quantity)
(L {US qt, Imp qt})
1.59 {1.68, 1.40}


Manual Transaxle [C66M-R]

Item

Specifications

Engine type

SKYACTIV-G 2.0

SKYACTIV-G 2.5

SKYACTIV-D 1.5
Transaxle control
Floor-shift
Operation system
Cable
Shift assist
Forward
Synchromesh
Reverse
Synchromesh
Gear ratio
1GR
General (R.H.D.), European (L.H.D., U.K.) specs. with i-ELOOP: 3.363
European (L.H.D., U.K.) specs. without i-ELOOP: 3.700
Australian, General (L.H.D., R.H.D.) specs.: 3.363
3.700
2GR
1.947
3GR
1.300
4GR
1.029
0.916
5GR
0.837
0.717
6GR
0.680
0.580
Reverse
General (R.H.D.), European (L.H.D., U.K.) specs. with i-ELOOP: 3.385
European (L.H.D., U.K.) specs. without i-ELOOP: 3.724
Australian, General (L.H.D., R.H.D.) specs.: 3.385
3.724
Final gear ratio
General (R.H.D.), European (L.H.D., U.K.) specs. with i-ELOOP: 4.388
European (L.H.D., U.K.) specs. without i-ELOOP: 3.619
Australian, General (L.H.D., R.H.D.) specs.: 4.105
4.105
3.850
Manual transaxle oil
Grade
API service GL-4
Viscosity
All season
SAE 75W-80
Capacity
(approx. quantity)
(L {US qt, Imp qt})
1.70 {1.80, 1.50}
1.65 {1.74, 1.45}


Manual Transaxle [D66M-R]

Item

Specifications

Engine type

SKYACTIV-D 2.2
Transaxle control
Floor-shift
Operation system
Cable
Shift assist
Forward
Synchromesh
Reverse
Synchromesh
Gear ratio
1GR
3.357
2GR
1.826
3GR
1.565
4GR
European (L.H.D., U.K.) specs.: 1.085
Australian specs.: 1.147
5GR
European (L.H.D., U.K.) specs.: 0.854
Australian specs.: 0.893
6GR
European (L.H.D., U.K.) specs.: 0.711
Australian specs.: 0.745
Reverse
4.091
Final gear ratio
1GR/2GR
European (L.H.D., U.K.) specs.: 3.619
Australian specs.:3.850
Except 1GR/2GR
European (L.H.D., U.K.) specs.: 2.814
Australian specs.:2.961
Manual transaxle oil
Grade
API service GL-4
Viscosity
All season
SAE 75W-80
Capacity
(approx. quantity)
(L {US qt, Imp qt})
2.40 {2.54, 2.11}


Automatic Transaxle [FN4A-EL]

Item

Specifications

Engine type

MZR 1.6
Gear ratio
1GR
2.816
2GR
1.553
3GR
1.000
4GR
0.695
Reverse
2.279
Final gear ratio
4.147
ATF
Type
ATF M-V
Capacity
(Approx. quantity)
(L {US qt, lmp qt})
7.0 {7.4, 6.2}
Torque converter stall torque ratio
2.25
Hydraulic system
(Number of drive/driven gear plates)
Forward clutch
4/4
3-4 clutch
3/3
Reverse clutch
2/2
Low and reverse brake
5/5
Band servo
Servo diameter
(Piston outer dia.)
(mm {in})
64.6 {2.54}
Front planetary gear
(Number of teeth)
Front sun gear
49
Front pinion gear
20
Front internal gear
89
Rear planetary gear
(Number of teeth)
Rear sun gear
43
Rear pinion gear
27
Rear internal gear
98
Primary gear (number of teeth)
86
Secondary gear (number of teeth)
82
Output gear (number of teeth)
20
Ring gear (number of teeth)
87


Automatic Transaxle [CW6A-EL]

Item

Specifications

Engine type

SKYACTIV-G 1.5
Gear ratio
1GR
3.529
2GR
2.025
3GR
1.348
4GR
1.000
5GR
0.742
6GR
0.594
Reverse
2.994
Final gear ratio
European (L.H.D., U.K.), Islaeli, General (R.H.D.) specs.: 4.319
General (L.H.D.) specs.: 4.605
ATF
Type
ATF FZ
Capacity
(Approx. quantity)
(L {US qt, lmp qt})
7.2 {7.6, 6.3}
Torque converter stall torque ratio
2.22
Hydraulic system
(Number of drive/driven gear plates)
Low clutch
3/3
High clutch
4/4
Low and reverse brake
4/4
2-6 brake
3/3
R-3-5 brake
2/2
Front planetary gear
(Number of teeth)
Front sun gear
34
Front pinion gear
26
Front internal gear
86
Rear planetary gear
(Number of teeth)
Rear sun gear
37
Rear pinion gear
26
Rear internal gear
89
Reduction planetary gear
(Number of teeth)
Reduction sun gear
49
Reduction pinion gear No.1
22
Reduction pinion gear No.2
23
Reduction internal gear
100
Primary gear (number of teeth)
41
Secondary gear (number of teeth)
46
Output gear (number of teeth)
19*1
20*2
Ring gear (number of teeth)
78*1
77*2

*1  :European (L.H.D.) specs.and General (L.H.D. (except for Israel and Mexican-manufactured vehicle)) specs.
*2  :European (U.K.) specs., General (R.H.D.) specs., and General (L.H.D. (Israel and Mexican-manufactured vehicle)) specs.


Automatic Transaxle [EW6A-EL]

Item

Specifications

Engine type

SKYACTIV-D 1.5
Gear ratio
1GR
3.552
2GR
2.022
3GR
1.452
4GR
1.000
5GR
0.708
6GR
0.599
Reverse
3.893
Final gear ratio
3.591
ATF
Type
ATF FZ
Capacity
(Approx. quantity)
(L {US qt, lmp qt})
7.8 {8.2, 6.9}
Torque converter stall torque ratio
1.82
Hydraulic system
(Number of drive/driven gear plates)
Low clutch
5/5
High clutch
5/5
Low and reverse brake
4/4
2-6 brake
4/4
R-3-5 brake
2/4
Front planetary gear
(Number of teeth)
Front sun gear
38
Front pinion gear
29
Front internal gear
97
Rear planetary gear
(Number of teeth)
Rear sun gear
40
Rear pinion gear
27
Rear internal gear
95
Reduction planetary gear
(Number of teeth)
Reduction sun gear
68
Reduction pinion gear
21
Reduction internal gear
109
Primary gear (number of teeth)
56
Secondary gear (number of teeth)
59
Output gear (number of teeth)
22
Ring gear (number of teeth)
75


Automatic Transaxle [FW6A-EL]

Item

Specifications

Engine type

SKYACTIV-G 2.0

SKYACTIV-G 2.5
Gear ratio
1GR
3.552
2GR
2.022
3GR
1.452
4GR
1.000
5GR
0.708
6GR
0.599
Reverse
3.893
Final gear ratio
European (L.H.D., U.K.) specs. (except Russian specs.):4.056
Russian specs.: 4.325
Australian, General (L.H.D., R.H.D.) specs.:3.812
3.812
ATF
Type
ATF FZ
Capacity
(Approx. quantity)
(L {US qt, lmp qt})
7.8 {8.2, 6.9}
Torque converter stall torque ratio
1.82
1.74
Hydraulic system
(Number of drive/driven gear plates)
Low clutch
5/5
High clutch
5/5
Low and reverse brake
4/4
2-6 brake
4/4
R-3-5 brake
3/3
Front planetary gear
(Number of teeth)
Front sun gear
38
Front pinion gear
29
Front internal gear
97
Rear planetary gear
(Number of teeth)
Rear sun gear
40
Rear pinion gear
27
Rear internal gear
95
Reduction planetary gear
(Number of teeth)
Reduction sun gear
68
Reduction pinion gear
21
Reduction internal gear
109
Primary gear (number of teeth)
56
Secondary gear (number of teeth)
59
Output gear (number of teeth)
European (L.H.D., U.K.) specs.:19
Australian, General (L.H.D., R.H.D.) specs.:21
21
Ring gear (number of teeth)
European (L.H.D., U.K.) specs.:78
Australian, General (L.H.D., R.H.D.) specs.:76
76


Automatic Transaxle [GW6A-EL]

Item

Specifications

Engine type

SKYACTIV-D 2.2
Gear ratio
1GR
3.487
2GR
1.992
3GR
1.449
4GR
1.000
5GR
0.707
6GR
0.600
Reverse
3.990
Final gear ratio
European (L.H.D., U.K.) specs.: 3.548
Australian specs.: 3.804
ATF
Type
ATF FZ
Capacity
(Approx. quantity)
(L {US qt, lmp qt})
8.0 {8.5, 7.0}
Torque converter stall torque ratio
1.88
Hydraulic system
(Number of drive/driven gear plates)
Low clutch
5/5
High clutch
5/5
Low and reverse brake
5/5
2-6 brake
5/5
R-3-5 brake
4/4
Front planetary gear
(Number of teeth)
Front sun gear
39
Front pinion gear
29
Front internal gear
97
Rear planetary gear
(Number of teeth)
Rear sun gear
41
Rear pinion gear
27
Rear internal gear
95
Reduction planetary gear
(Number of teeth)
Reduction sun gear
66
Reduction pinion gear
22
Reduction internal gear
109
Primary gear (number of teeth)
56
Secondary gear (number of teeth)
59
Output gear (number of teeth)
19
Ring gear (number of teeth)
64

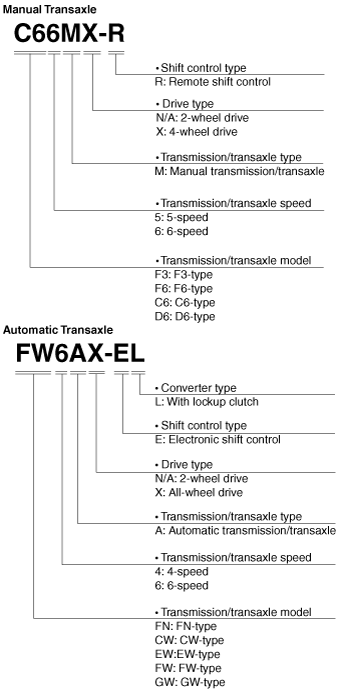

Identification

•  Each Transmission/Transaxle is assigned a specific Mazda type code. The code can be broken down as follows:
am3zzn00005229
