ON-BOARD DIAGNOSTIC SYSTEM FOREWORD [TCM (GW6A-EL)]


id0502o7027300

•  If there is any vehicle malfunction complaint lodged by a customer, perform malfunction diagnosis according to the troubleshooting procedure.

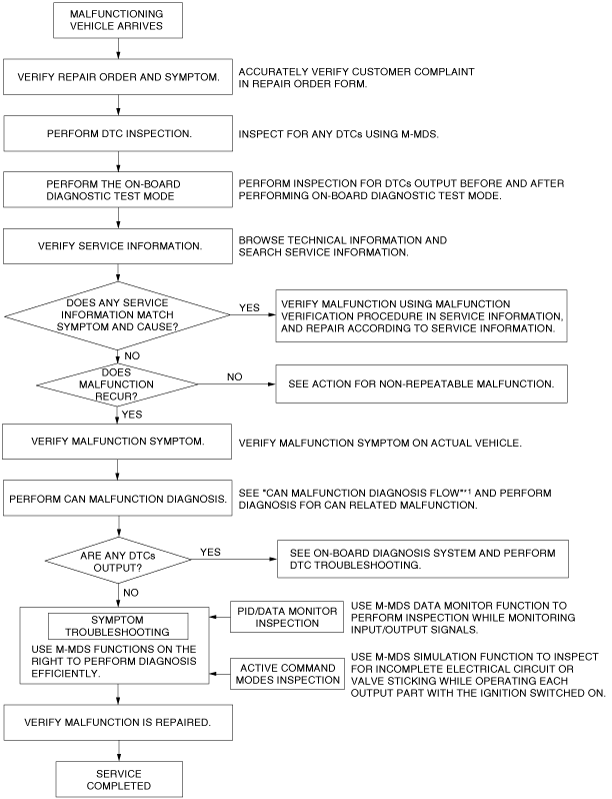

Troubleshooting Procedure

am6zzw00011451
*1  :(See CONTROLLER AREA NETWORK (CAN) MALFUNCTION DIAGNOSIS FLOW [SKYACTIV-D 1.5 (ATX), SKYACTIV-D 2.2 (ATX) (L.H.D.)].) (See CONTROLLER AREA NETWORK (CAN) MALFUNCTION DIAGNOSIS FLOW [SKYACTIV-D 1.5 (ATX), SKYACTIV-D 2.2 (ATX) (R.H.D.)].)

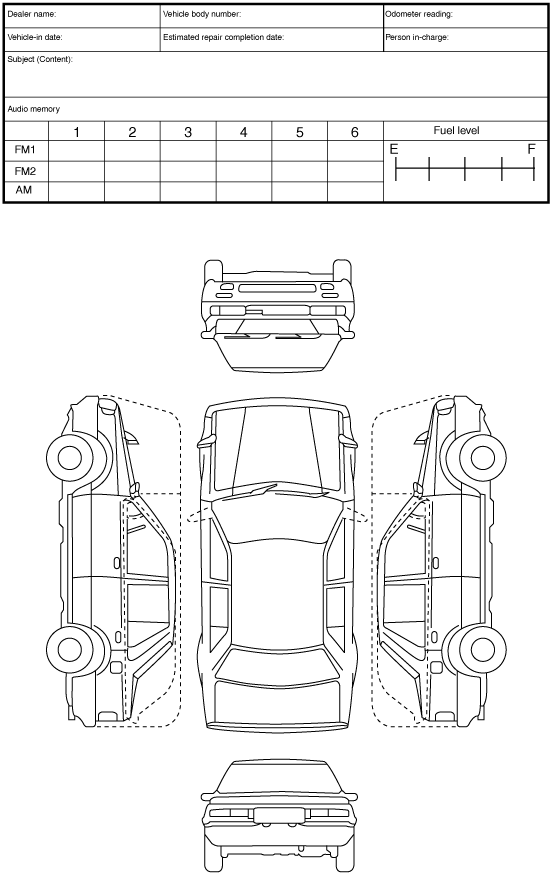

Repair order form

am3zzw00020520
ac5wzw00003066

Action for Non-repeatable Malfunction

•  If the malfunction does not recur, verify the malfunction cause by performing the following actions:
―  Verify that no DTCs are stored. (See ON-BOARD DIAGNOSTIC SYSTEM DTC INSPECTION [TCM (GW6A-EL)].)
―  Based on the repair order form, attempt to drive the vehicle or perform tests to replicate the malfunction, record the data at that time, and detect the malfunction cause.
•  If the malfunction does not recur after the above servicing, explain to the customer that the vehicle is normal.
