ON-BOARD DIAGNOSTIC SYSTEM OUTLINE [PCM (FN4A-EL)]

id0502q2280000

Features

• The OBD system has the following functions:

― Malfunction detection function

― Fail-safe function

― Diagnostic data memory function

― Malfunction indication function

― External tester communication function

― PID/DATA monitor function

― Simulation function

• Automatic Transaxle warning light adopted

• DLC-2 adopted

• CAN adopted

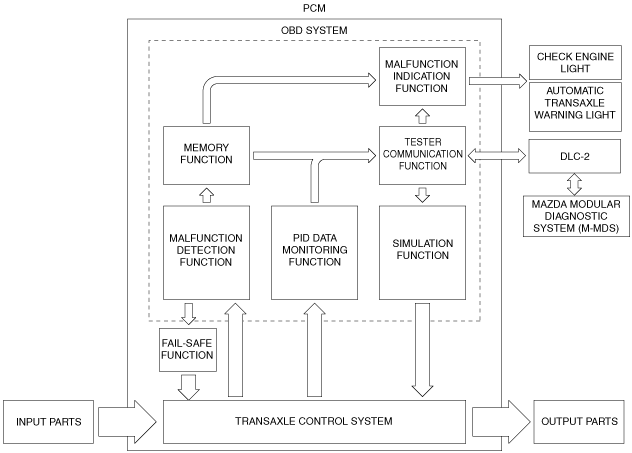

Block Diagram

am3zzn00003657
