FOREWORD [CW6A-EL]

id050321100100

• If there is any vehicle malfunction complaint lodged by a customer, perform malfunction diagnosis according to the troubleshooting procedure.

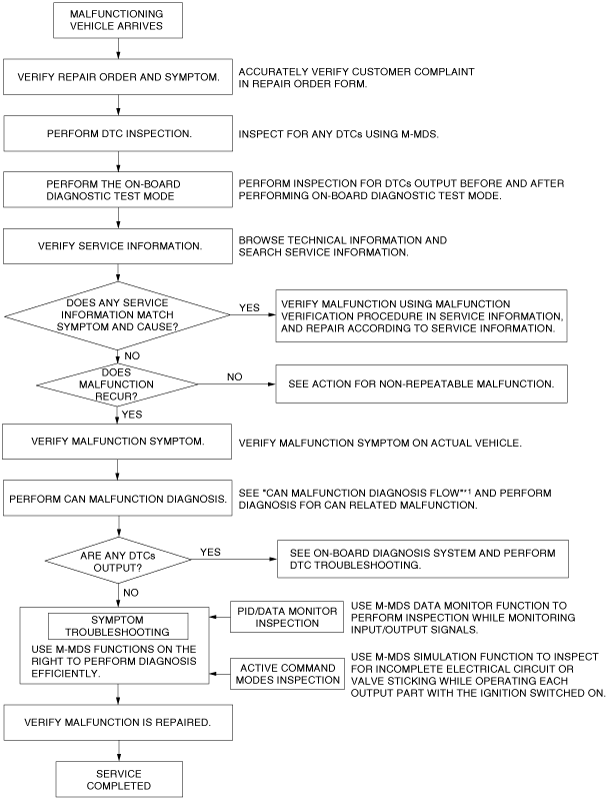

Troubleshooting Procedure

am6zzw00011453

*1 :(See CONTROLLER AREA NETWORK (CAN) MALFUNCTION DIAGNOSIS FLOW [SKYACTIV-G 1.5/2.0/2.5, SKYACTIV-D 1.5 (MTX), SKYACTIV-D 2.2 (MTX) (L.H.D.)].) (See CONTROLLER AREA NETWORK (CAN) MALFUNCTION DIAGNOSIS FLOW [SKYACTIV-G 1.5/2.0/2.5, SKYACTIV-D 1.5 (MTX), SKYACTIV-D 2.2 (MTX) (R.H.D.)].)

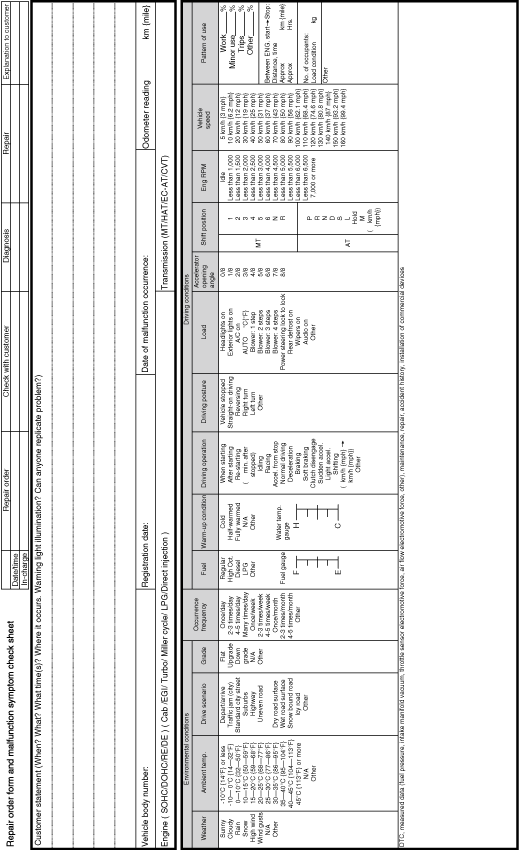

Repair order form

am3zzw00020522

ac5wzw00003064

Action for Non-repeatable Malfunction

• If the malfunction does not recur, verify the malfunction cause by performing the following actions:

― Verify that no DTCs are stored. (See ON-BOARD DIAGNOSTIC SYSTEM DTC INSPECTION [TCM (CW6A-EL)].)

― Based on the repair order form, attempt to drive the vehicle or perform tests to replicate the malfunction, record the data at that time, and detect the malfunction cause.

• If the malfunction does not recur after the above servicing, explain to the customer that the vehicle is normal.
