CLUTCH FLUID INSPECTION [F66M-R]

id0510q2156400

Note

•  A common reserve tank is used for the clutch system and brake system.

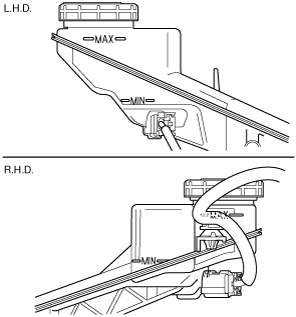

1.  Verify that the clutch fluid is between the MIN mark and the MAX mark.

am3zzw00013717

•  If fluid level is lower than MIN mark, perform the following procedure:

1.  Verify that there is no fluid leakage. (See CLUTCH FLUID LEAKAGE INSPECTION [F66M-R].)

2.  Add fluid to the level between MIN mark and the MAX mark.
