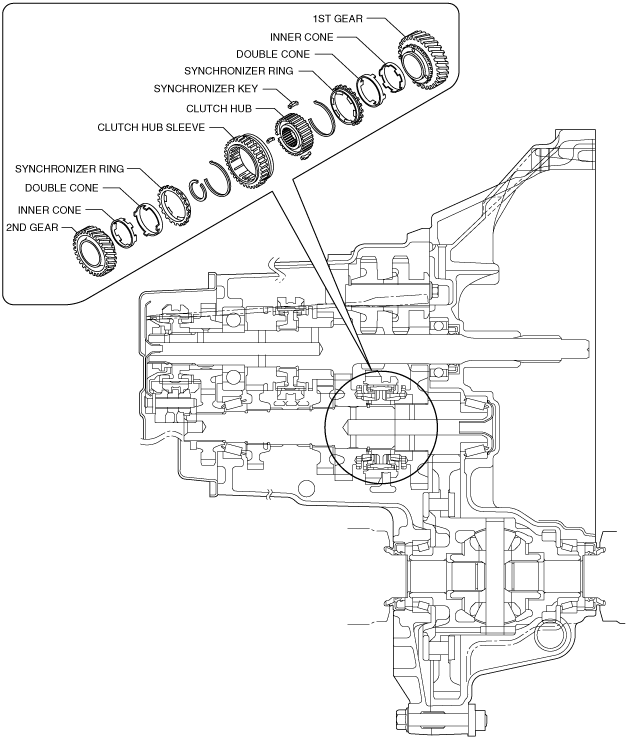

•  A double cone synchronizer mechanism has been adapted for the 1st and 2nd gears.

•  The double cone synchronizer mechanism is a compact device capable of heavy duty meshing.

•  The synchronizer mechanism reduces meshing time and improves operation.

•  The double cone synchro mechanism includes a synchronizer ring, double cone, and an inner cone.
