MANUAL TRANSAXLE OIL INSPECTION [F35M-R]


id0515a1159600

1.  Park the vehicle on level ground.

2.  Remove the front under cover No.2. (See FRONT UNDER COVER No.2 REMOVAL/INSTALLATION.)

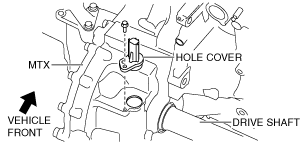

3.  Remove the hole cover.

am3zzw00014928

4.  Verify that the manual transaxle oil level is as shown in the figure.

am3zzw00014197

•  When the manual transaxle oil level is lower than the lower limit, add manual transaxle oil.

Manual transaxle oil grade

Manual transaxle oil viscosity

API service GL-4
SAE 75W-80

5.  Install the hole cover.

Tightening torque
8—11 N·m {80—112 kgf·cm, 70—97 in·lbf}

6.  Install the front under cover No.2. (See FRONT UNDER COVER No.2 REMOVAL/INSTALLATION.)
