MANUAL TRANSAXLE OIL REPLACEMENT [F35M-R]

id0515a1159700

1.  Park the vehicle on level ground.

2.  Remove the front under cover No.2. (See FRONT UNDER COVER No.2 REMOVAL/INSTALLATION.)

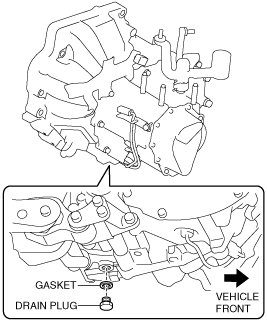

3.  Remove the drain plug and gasket, and drain the manual transaxle oil.

am3zzw00014198

4.  Install a new gasket and the drain plug.

Tightening torque
39—59 N·m {4.0—6.0 kgf·m, 29—43 ft·lbf}

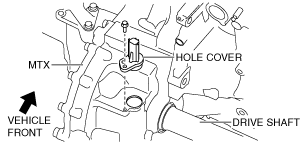

5.  Remove the hole cover.

am3zzw00014196

6.  Add the specified manual transaxle oil from the hole cover port to the specified level shown in the figure.

am3zzw00014197

Manual transaxle oil grade

Manual transaxle oil viscosity

Manual transaxle oil capacity (approx. quantity)
API service GL-4
SAE 75W-80
2.91 L {3.07 US qt, 2.56 lmp qt}

7.  Install the hole cover.

Tightening torque
8—11 N·m {80—112 kgf·cm, 70—97 in·lbf}

8.  Install the front under cover No.2. (See FRONT UNDER COVER No.2 REMOVAL/INSTALLATION.)
