DIFFERENTIAL [F66M-R]

id0515m5284200

Purpose, Function

• The differential absorbs the rotation speed of the inside and outside wheel of a wheel set when the vehicle is cornering.

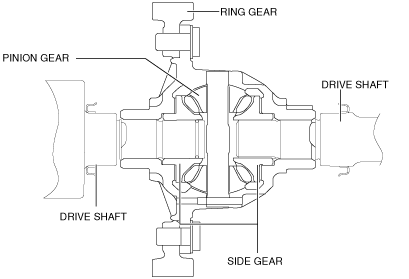

Construction

am2zzn00002547

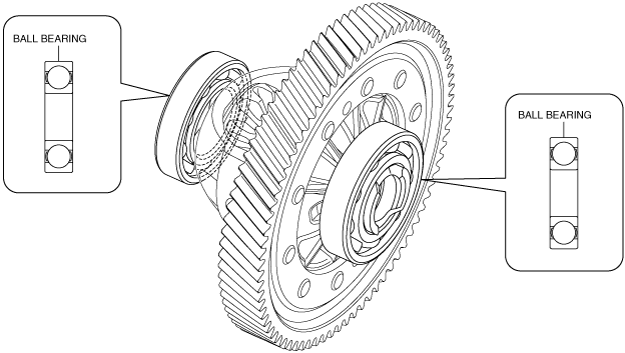

Ball bearing

• The differential has adopted ball bearings at the locations shown in the figure, reducing rotational friction resistance of the differential.

am2zzn00002548

Operation

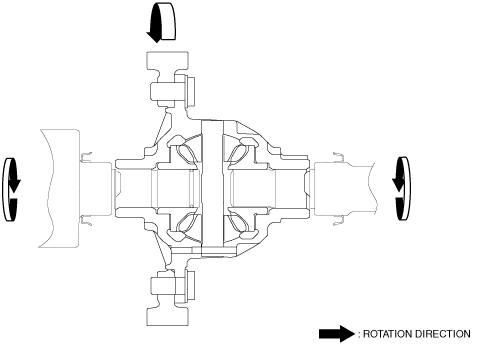

Driving in a straight line

am2zzn00002549

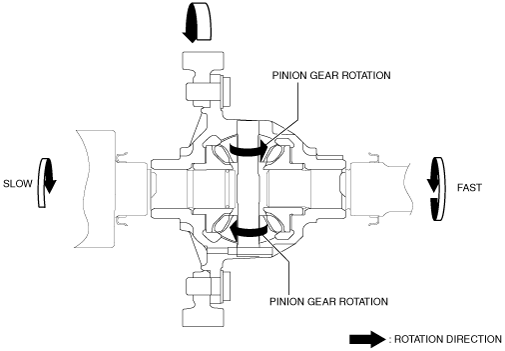

Cornering

am2zzn00002550
