MANUAL TRANSAXLE OIL INSPECTION [C66M-R]

id0515m8159600

1.  Park the vehicle on level ground.

2.  Remove the front under cover No.2. (See FRONT UNDER COVER No.2 REMOVAL/INSTALLATION.)

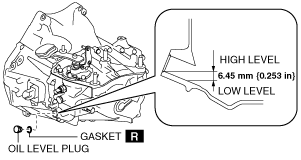

3.  Remove the oil level plug and gasket.

ac5wzw00002834

4.  Verify that the manual transaxle oil is near the brim of the plug port.

•  When the manual transaxle oil level is lower than the lower limit, add manual transaxle oil.

Manual transaxle oil grade

Manual transaxle oil viscosity
API service GL-4
SAE 75W-80

5.  Install a new gasket and the oil level plug.

Tightening torque
39—59 N·m {4.0—6.0 kgf·m, 29—43 ft·lbf}

6.  Install the front under cover No.2. (See FRONT UNDER COVER No.2 REMOVAL/INSTALLATION.)
