POWERTRAIN SYSTEM [C66M-R]


id0515m8284100


Purpose, Function

•  The powertrain mechanism changes the gear combination by engaging or releasing the clutch hub and gear, and changes the power transmission route. Because of the change in the power transmission route, the drive force (speed, torque, rotation direction) input from the engine is converted.

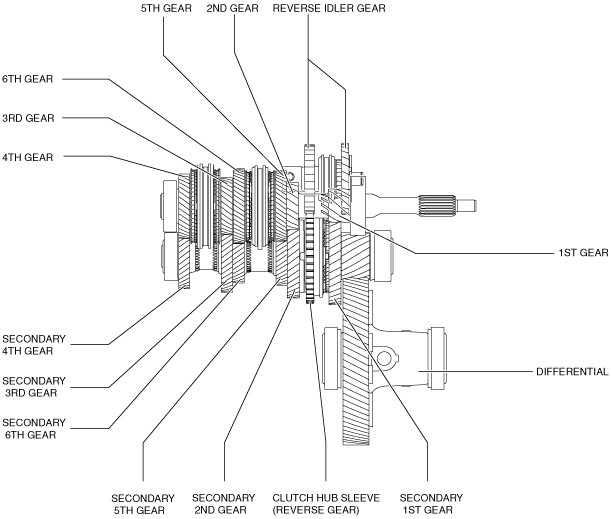

Construction

am3uun00001793

Operation

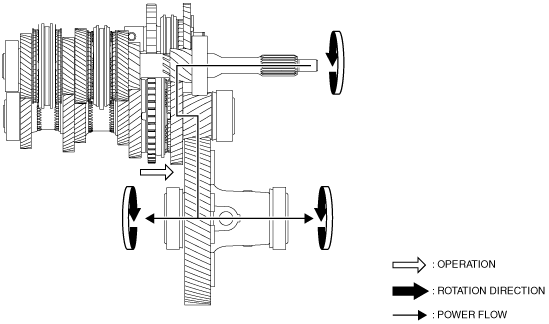

1GR

am3zzn00004188

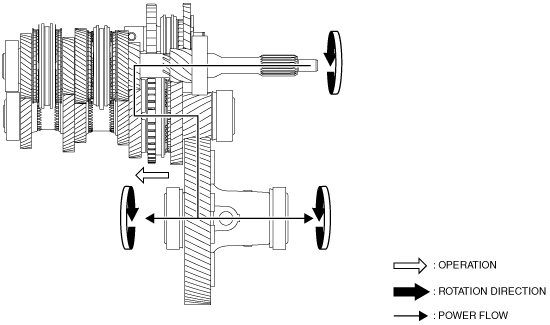

2GR

am3zzn00004189

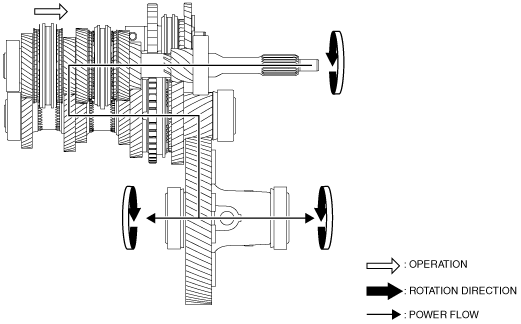

3GR

am3zzn00004190

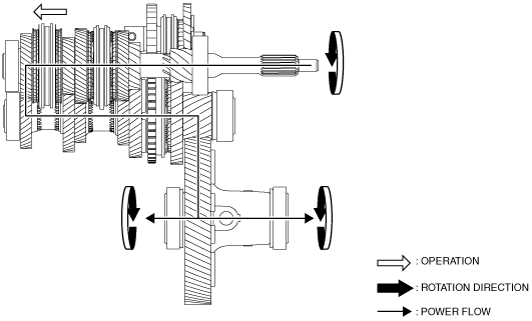

4GR

am3zzn00004191

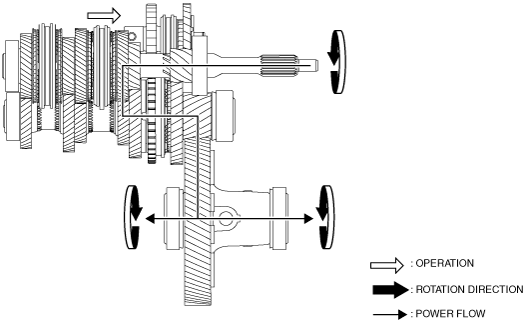

5GR

am3zzn00004192

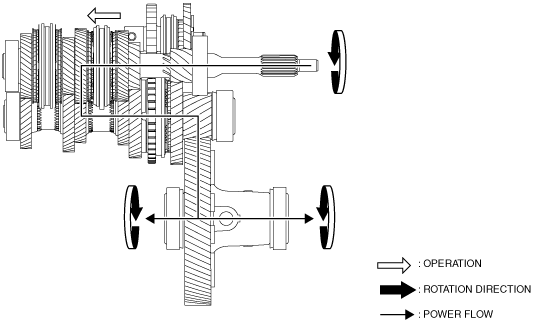

6GR

am3zzn00004193

Reverse

am3zzn00004194
