MANUAL TRANSAXLE OIL REPLACEMENT [F66M-R]

id0515n2159700

1.  Park the vehicle on level ground.

2.  Remove the front under cover No.2. (See FRONT UNDER COVER No.2 REMOVAL/INSTALLATION.)

3.  Remove the drain plug and gasket, and drain the manual transaxle oil.

am2zzw00010027

4.  Install a new gasket and the drain plug.

Tightening torque
39—59 N·m {4.0—6.0 kgf·m, 29—43 ft·lbf}

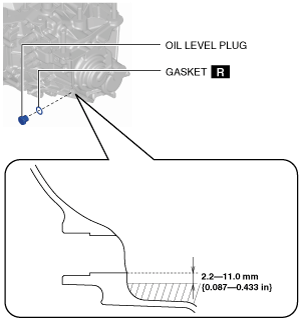

5.  Remove the oil level plug and gasket.

am3zzw00018917

6.  Add the specified manual transaxle oil through the oil level plug port.

Manual transaxle oil grade

Manual transaxle oil viscosity

Manual transaxle oil capacity (approx. quantity)
API service GL-4
SAE 75W-80
1.59 L {1.68 US qt, 1.39 Imp qt}

7.  Install a new gasket and the oil level plug.

Tightening torque
39—59 N·m {4.0—6.0 kgf·m, 29—43 ft·lbf}

8.  Install the front under cover No.2. (See FRONT UNDER COVER No.2 REMOVAL/INSTALLATION.)
